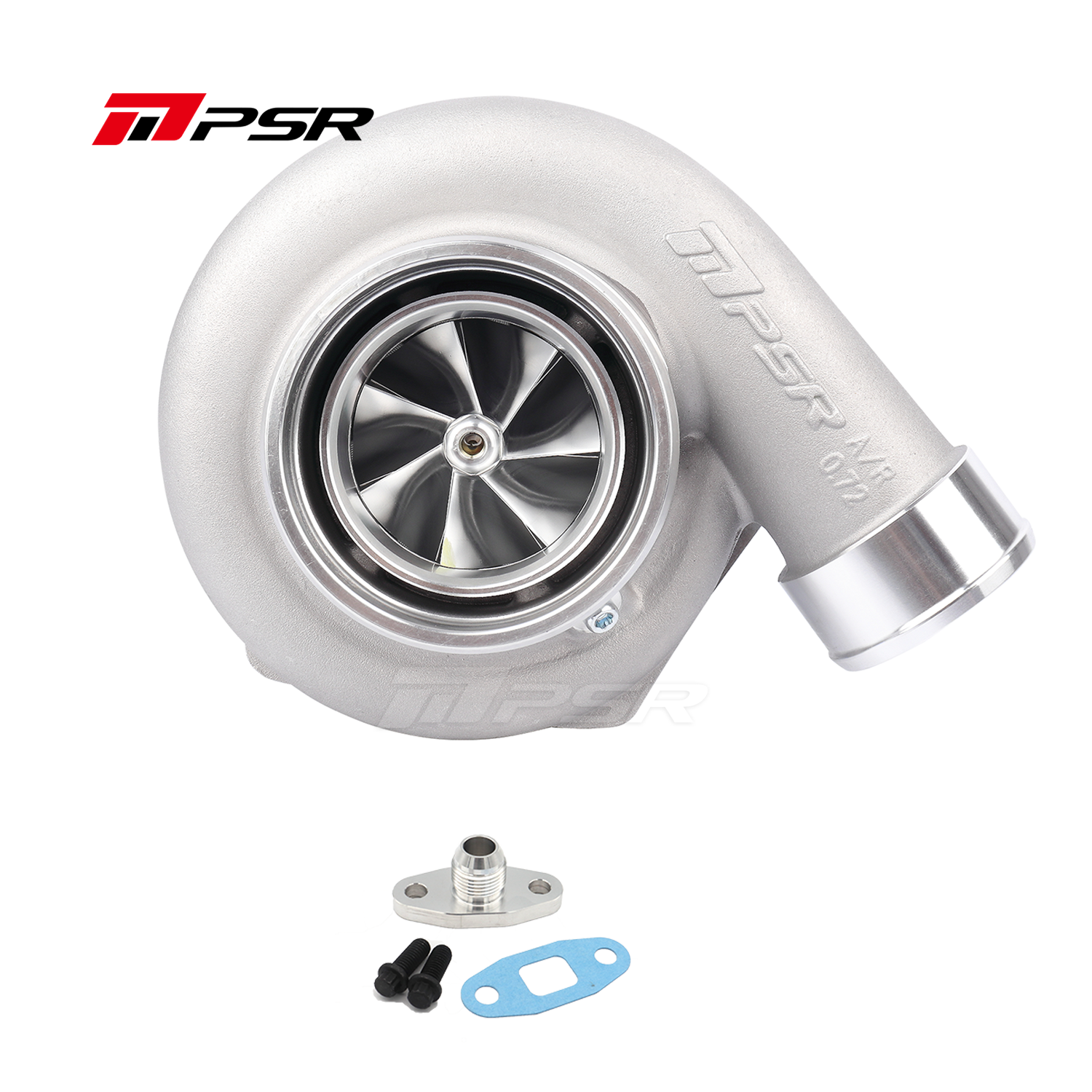

6870E Ball Bearing Turbo UP to 1100HP

Beschreibung

• Billet Compressor Wheel: 68/92.46mm, 7+7 Blade
• Turbine Wheel: 78.8 / 70.2mm, 10 Blade

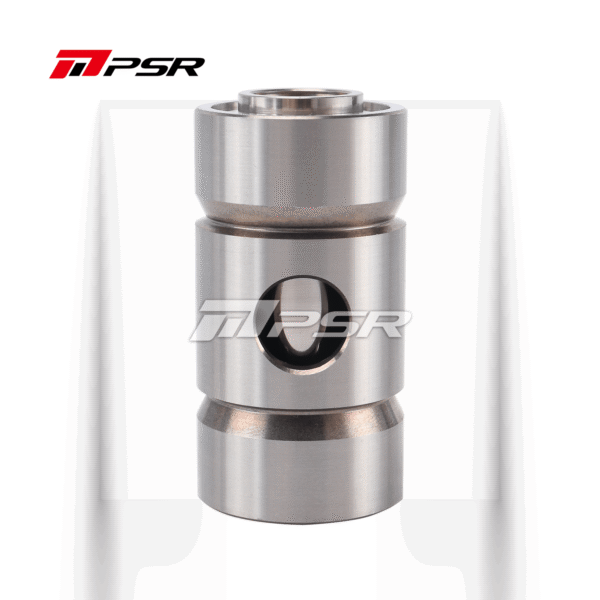

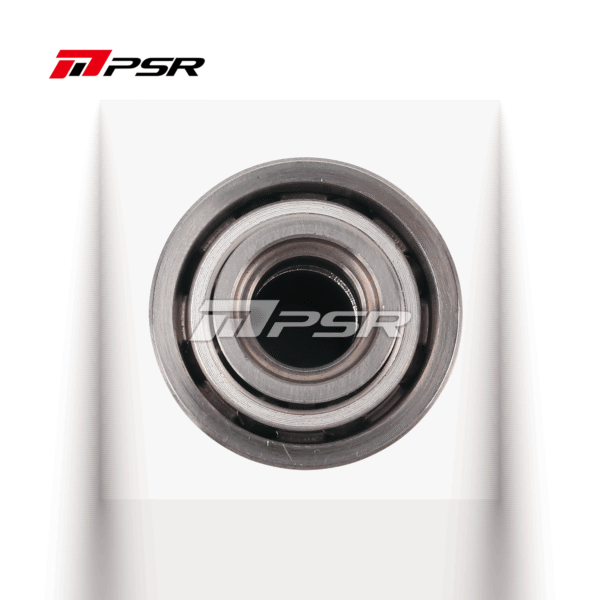

• Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
• Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose
• Turbine Housing: T4 Divided 1.0A/R (3″ V-band Outlet), T4 open 0.81A/R (3″ V-band Outlet)
• The internal oil feed port is 0.9mm(Oil restrictor is no needed)
• Oil feed fitting: 1/8-27 NPSF(Drawing)
• Oil drain: T4 flange(Drawing)
• Oil Drain Fitting:

10AN_STD

10AN_EXTENDED
