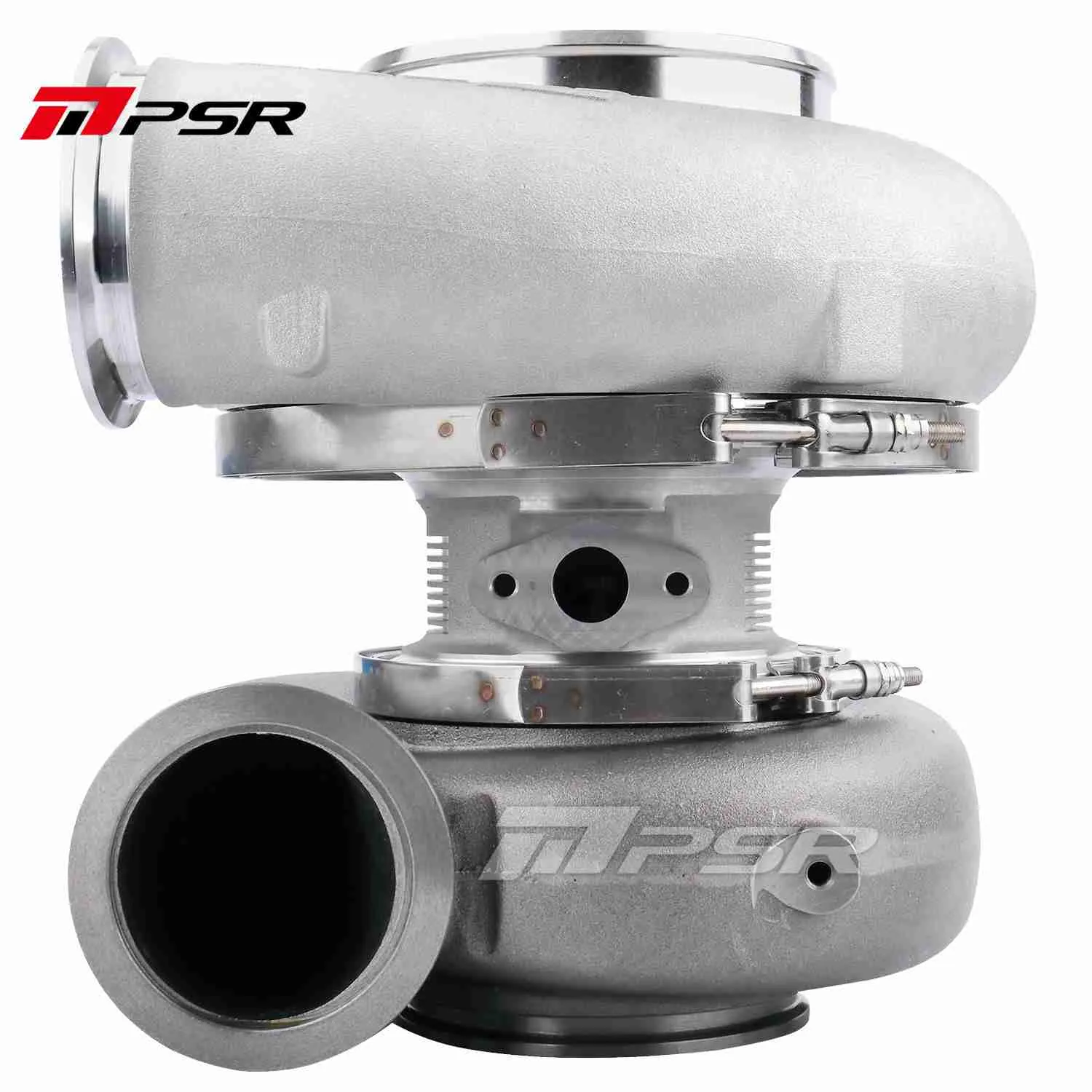

PSR PRO98 HP Rating 2550

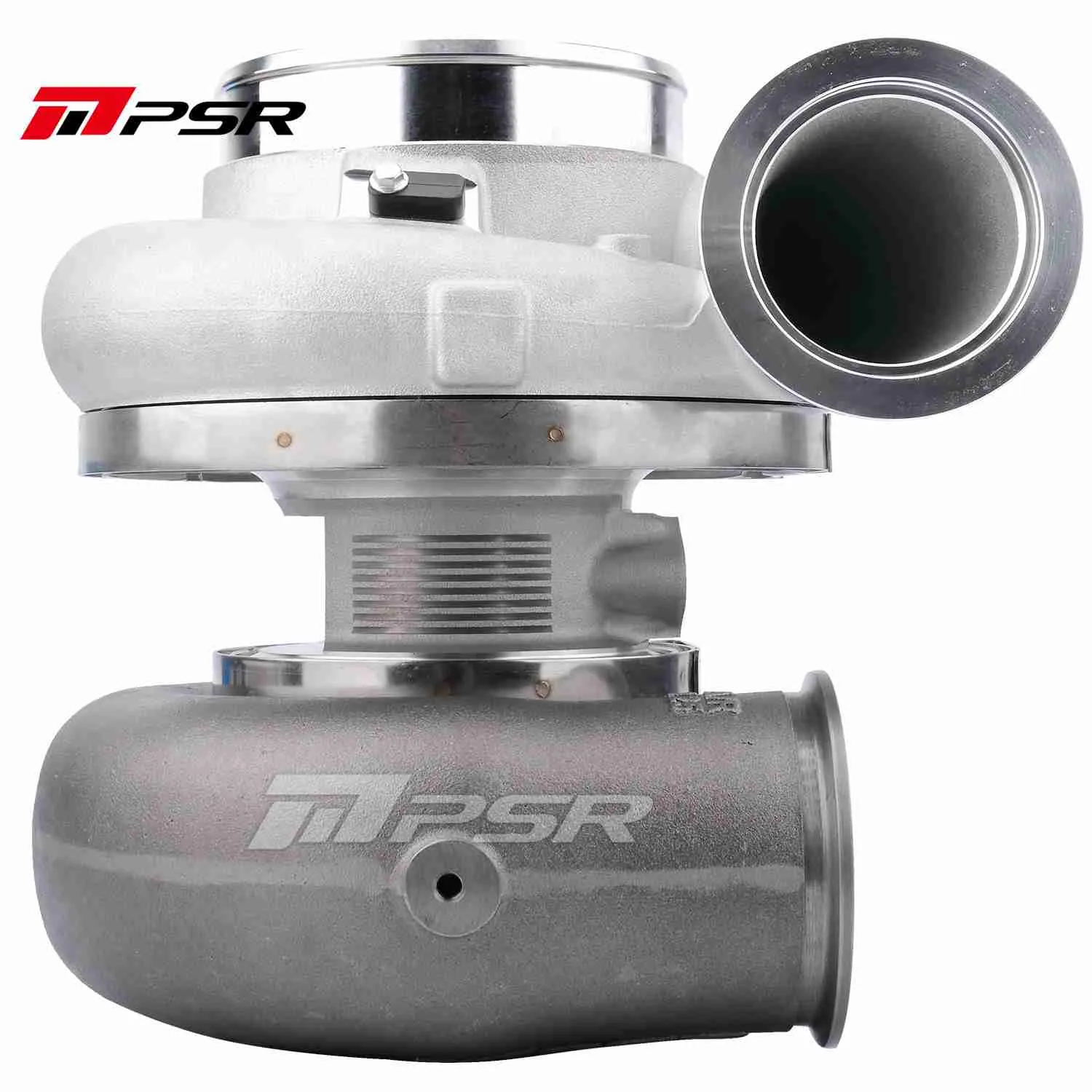

PSR PRO98 HP Rating 2550 – Bild 2

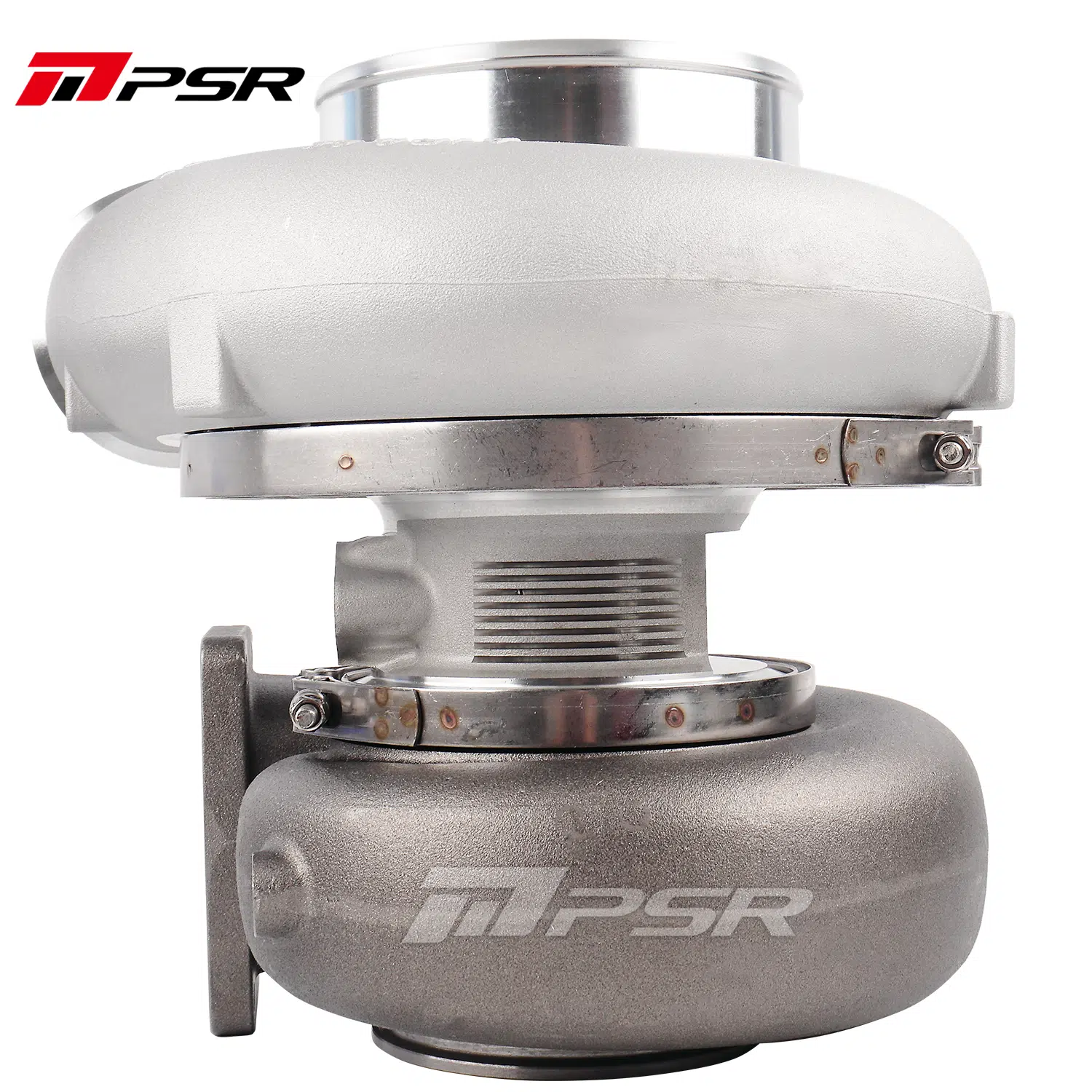

PSR PRO98 HP Rating 2550 – Bild 3

PSR PRO98 HP Rating 2550 – Bild 4

PSR PRO98 HP Rating 2550 – Bild 5

PSR PRO98 HP Rating 2550 – Bild 6

PSR PRO98 HP Rating 2550 – Bild 7

PSR PRO98 HP Rating 2550 – Bild 8

PSR PRO98 HP Rating 2550 – Bild 9

PSR PRO98 HP Rating 2550 – Bild 10

PSR PRO98 HP Rating 2550 – Bild 11

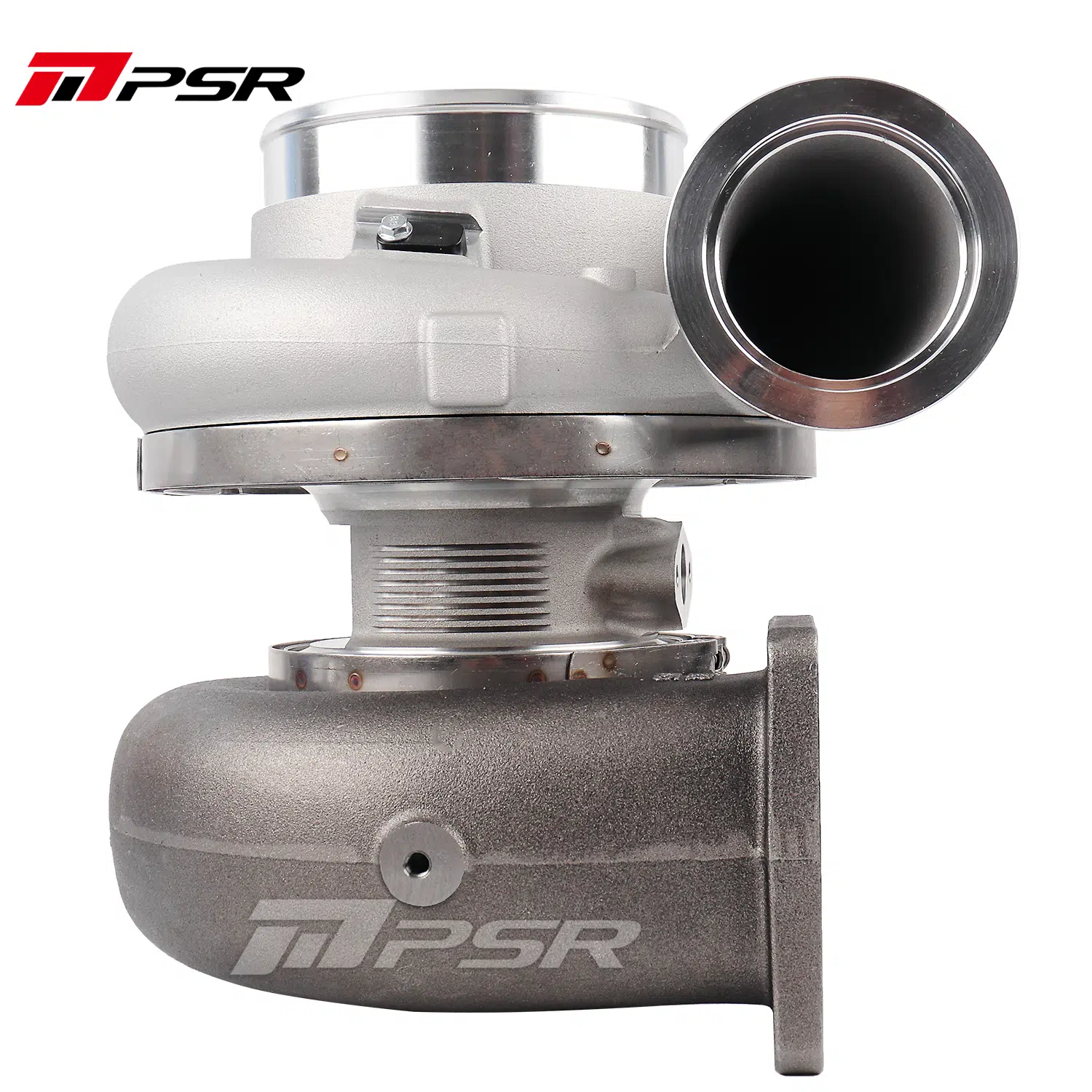

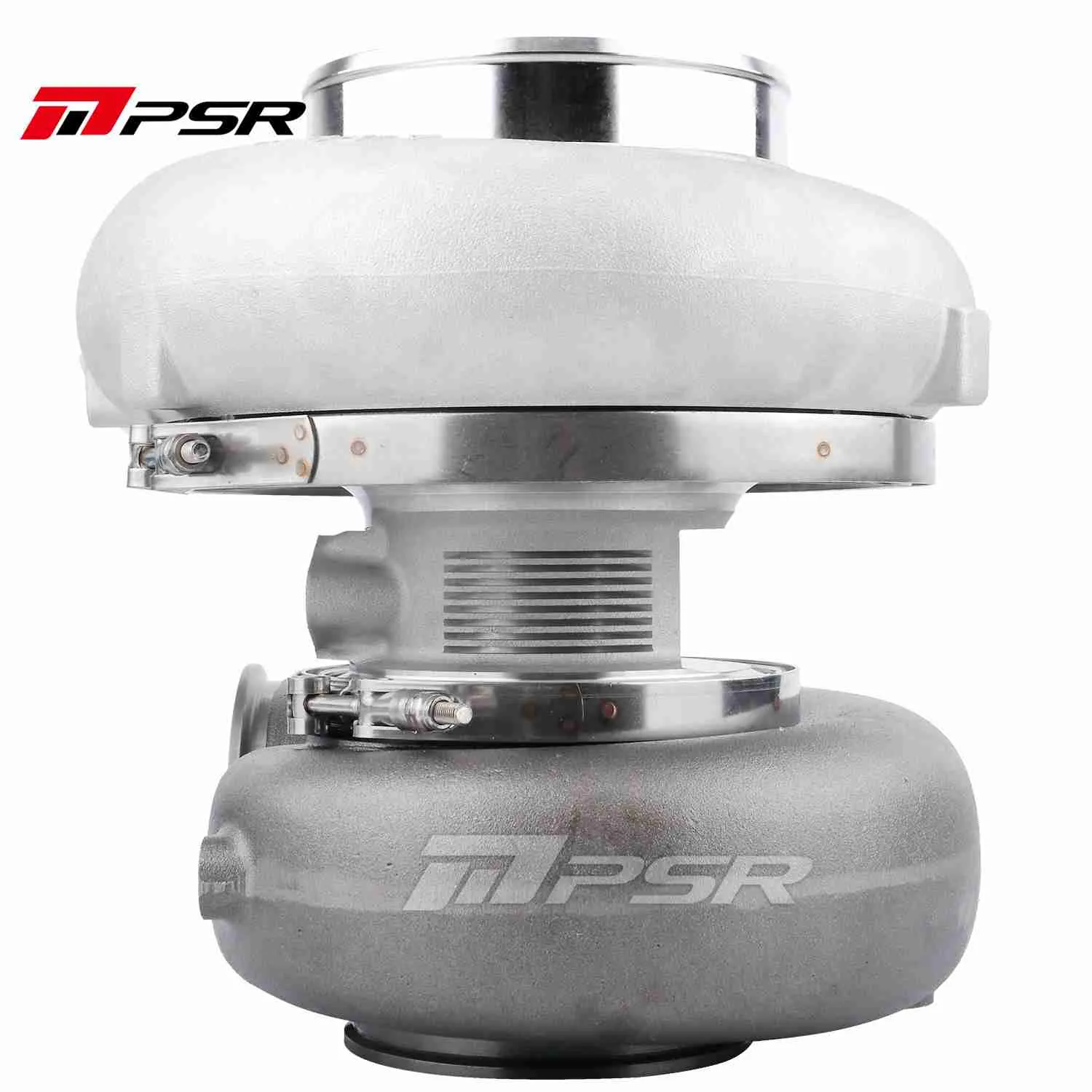

PSR PRO98 HP Rating 2550

2.201,49 € – 3.450,99 €

inkl. MwSt. zzgl. Versandkosten

Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion

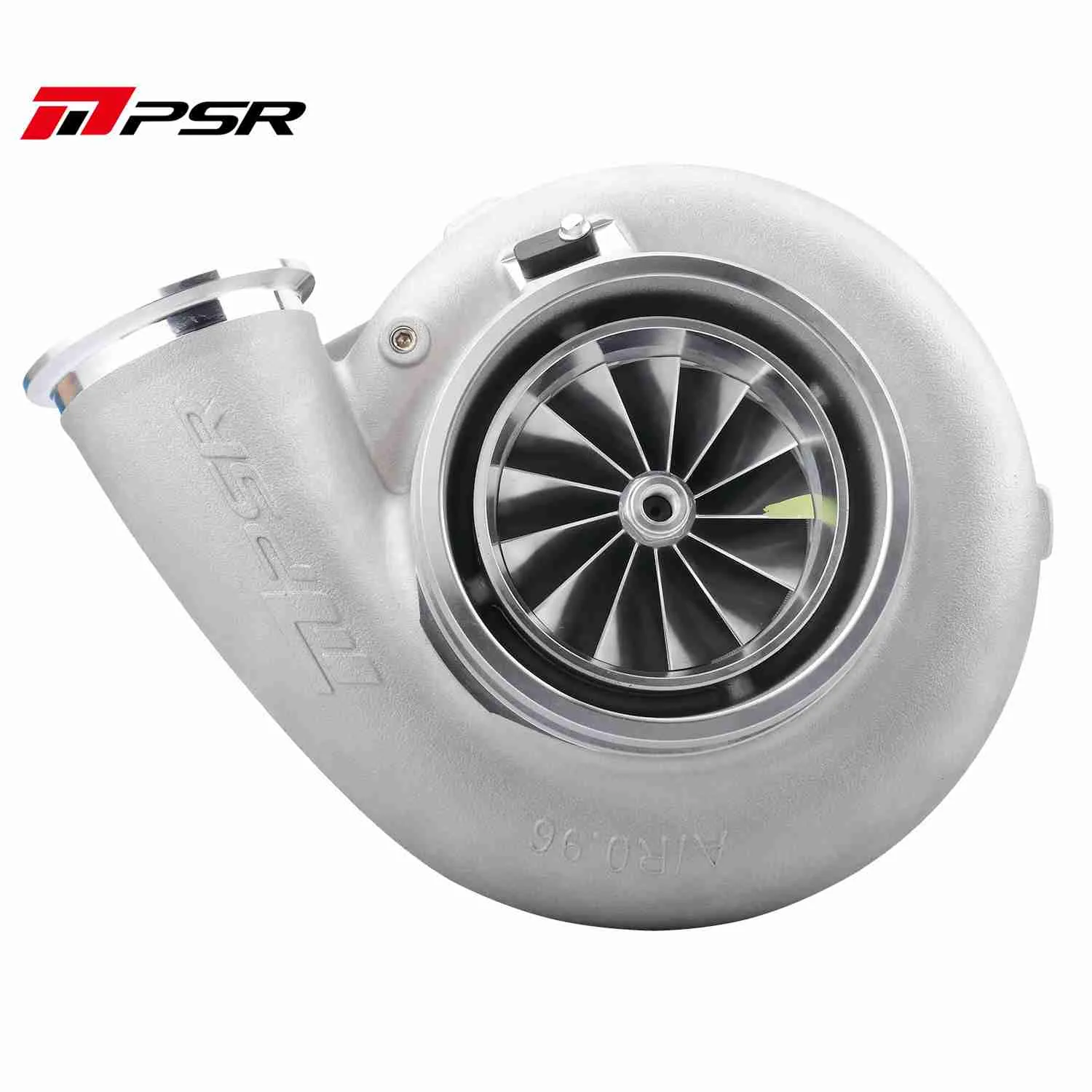

13 Blade G-Aero billet compressor wheel 98mm inducer produces up to 2550 hp

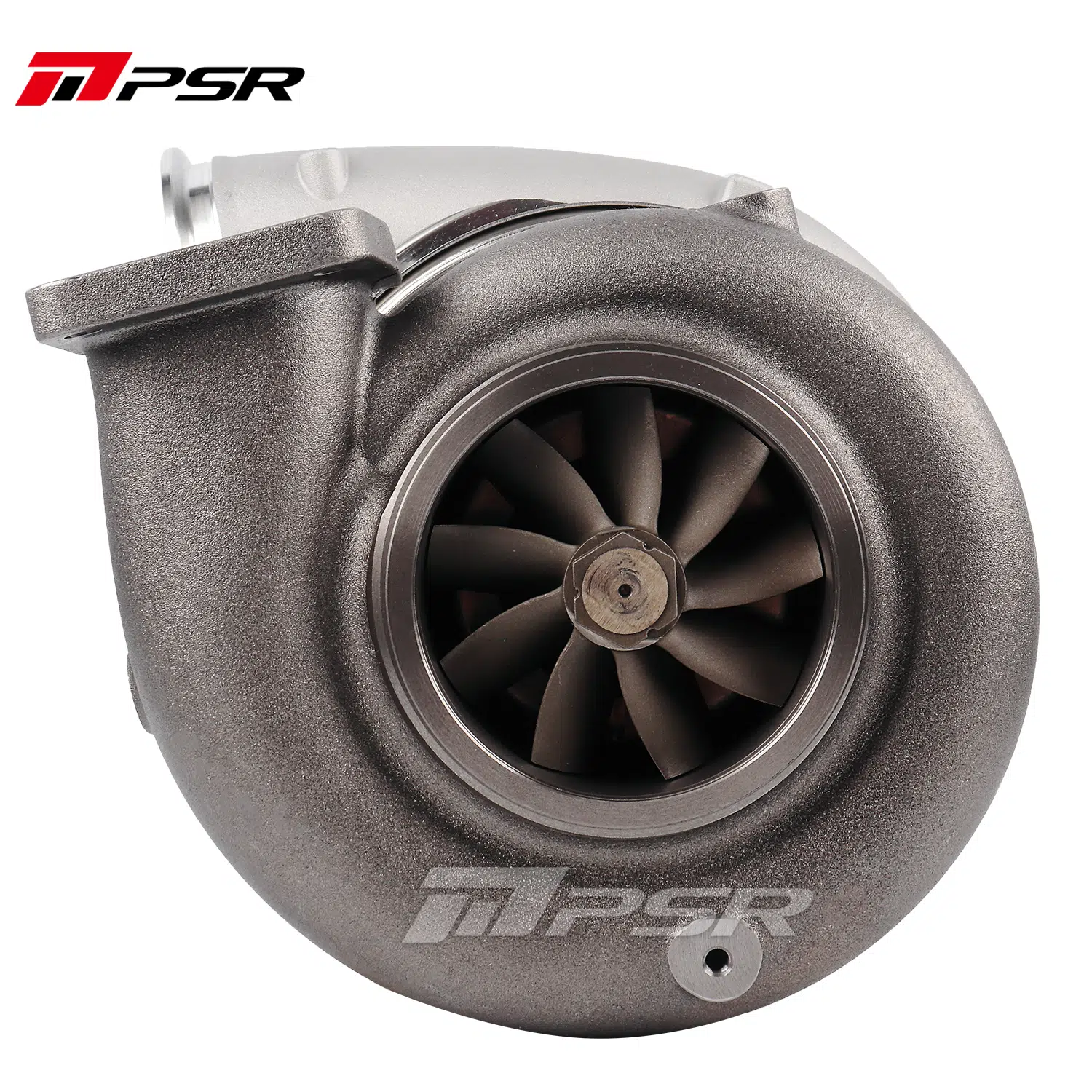

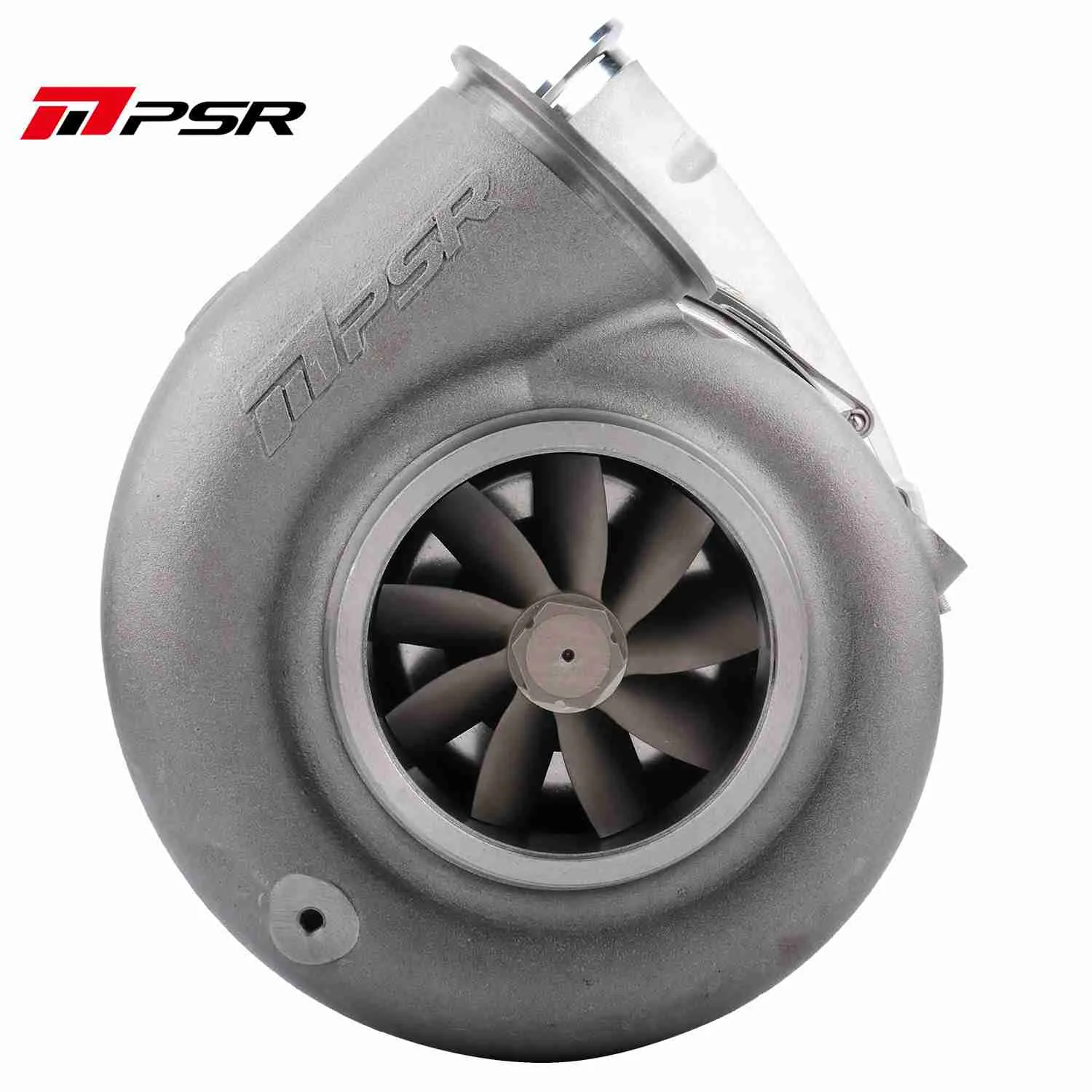

9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow

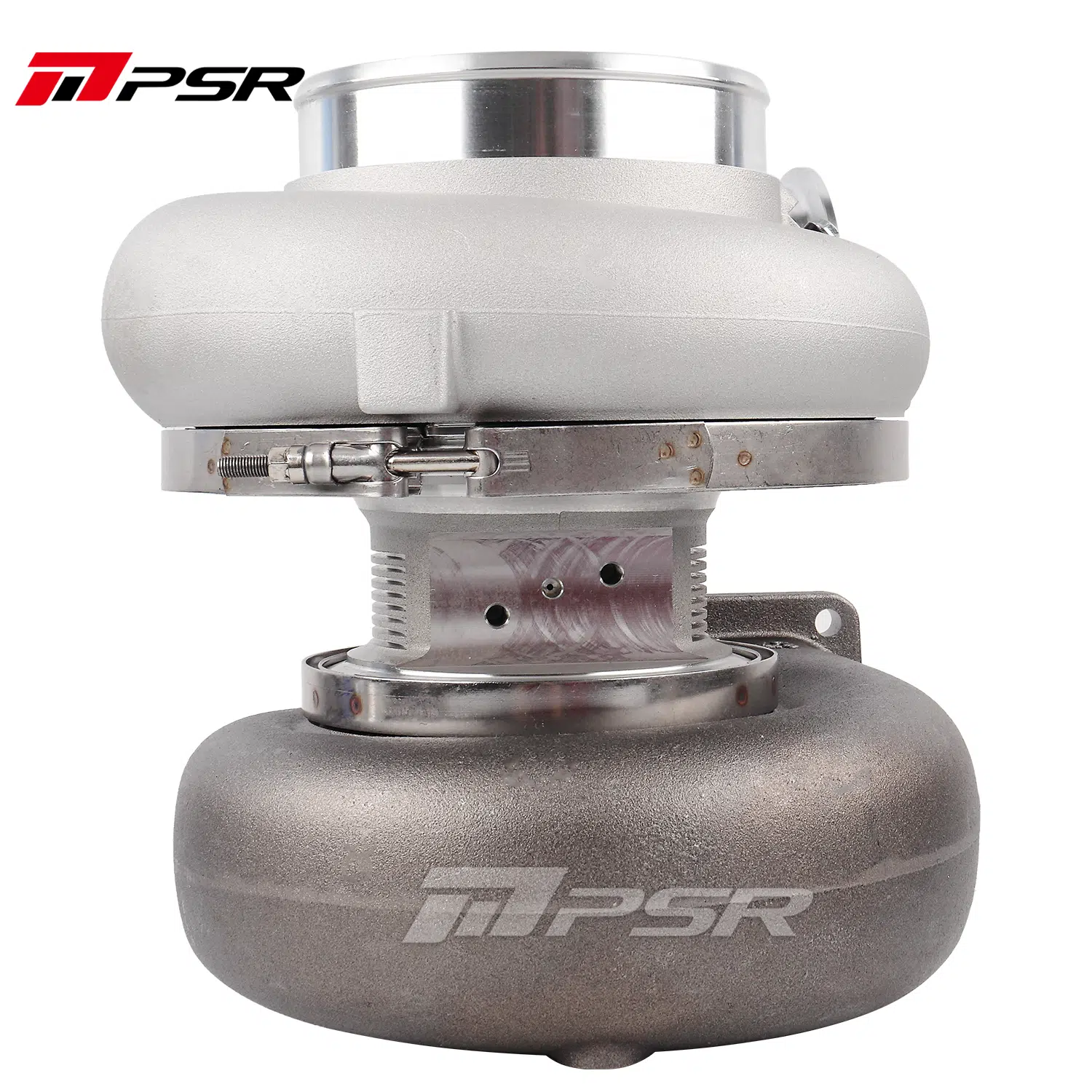

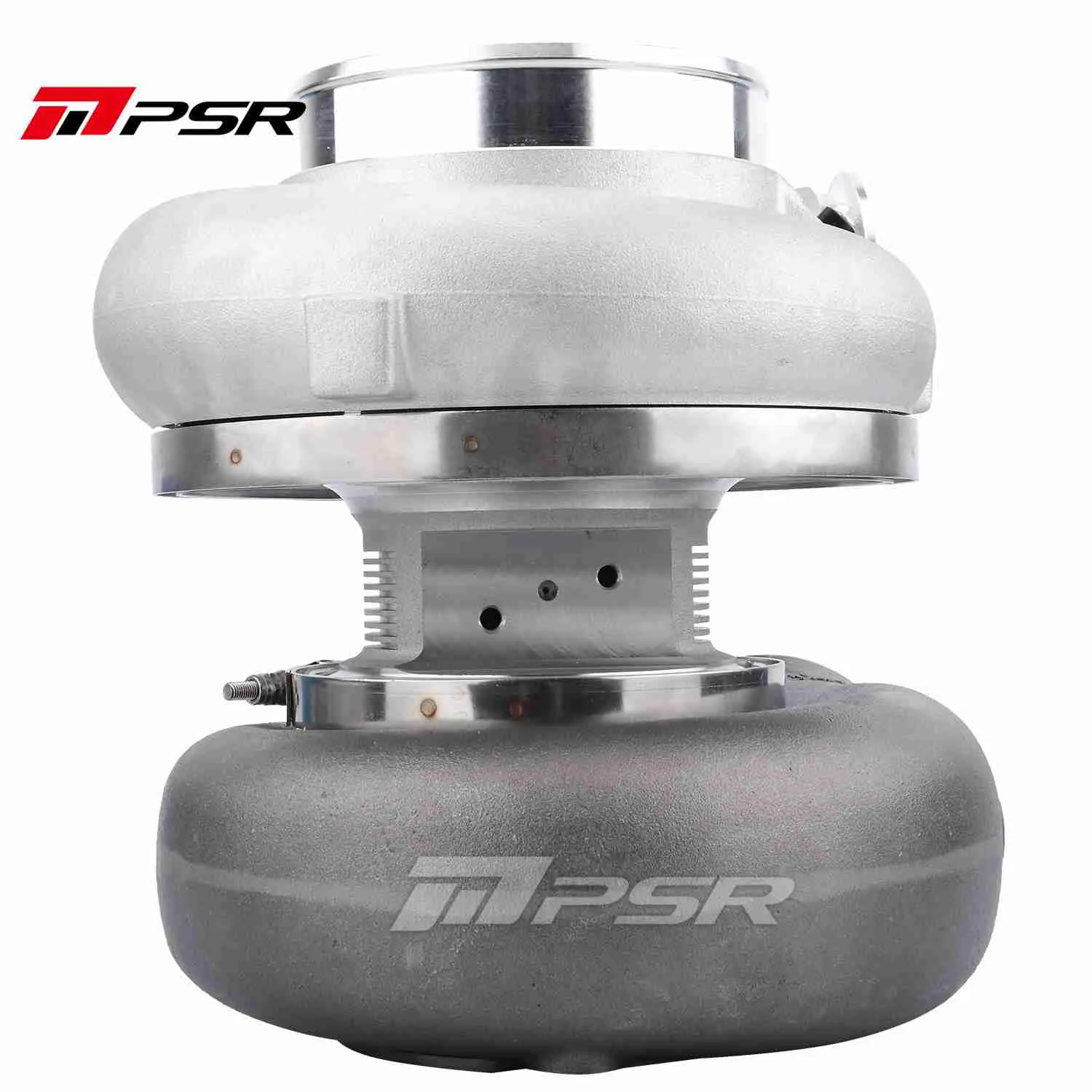

Fin cooled aluminum center housing, lighter weight
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Installation Hardware: 4?? flange kit for Comp. Outlet, T6 Gasket/3.5?? flange kit for Turb. Inlet,?5?? flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting needs to be bought separately, check the link if you need it, ?

Compressor Housing Options

Turbine Housing Options

Zurücksetzen

Artikelnummer: n. a. Kategorien: PTG Series, Pulsar Turbo, Turbo Schlagwort: Promod Marke: Pulsar Turbo, Pulsar Turbo Systems

Beschreibung

Compressor Wheel: 98.4*133.5*142.4mm
Turbine Wheel: 118*112mm
Compressor Inlet: 6“ Hose
Compressor Outlet: 4“ V-band
Compressor Housing A/R: 0.96

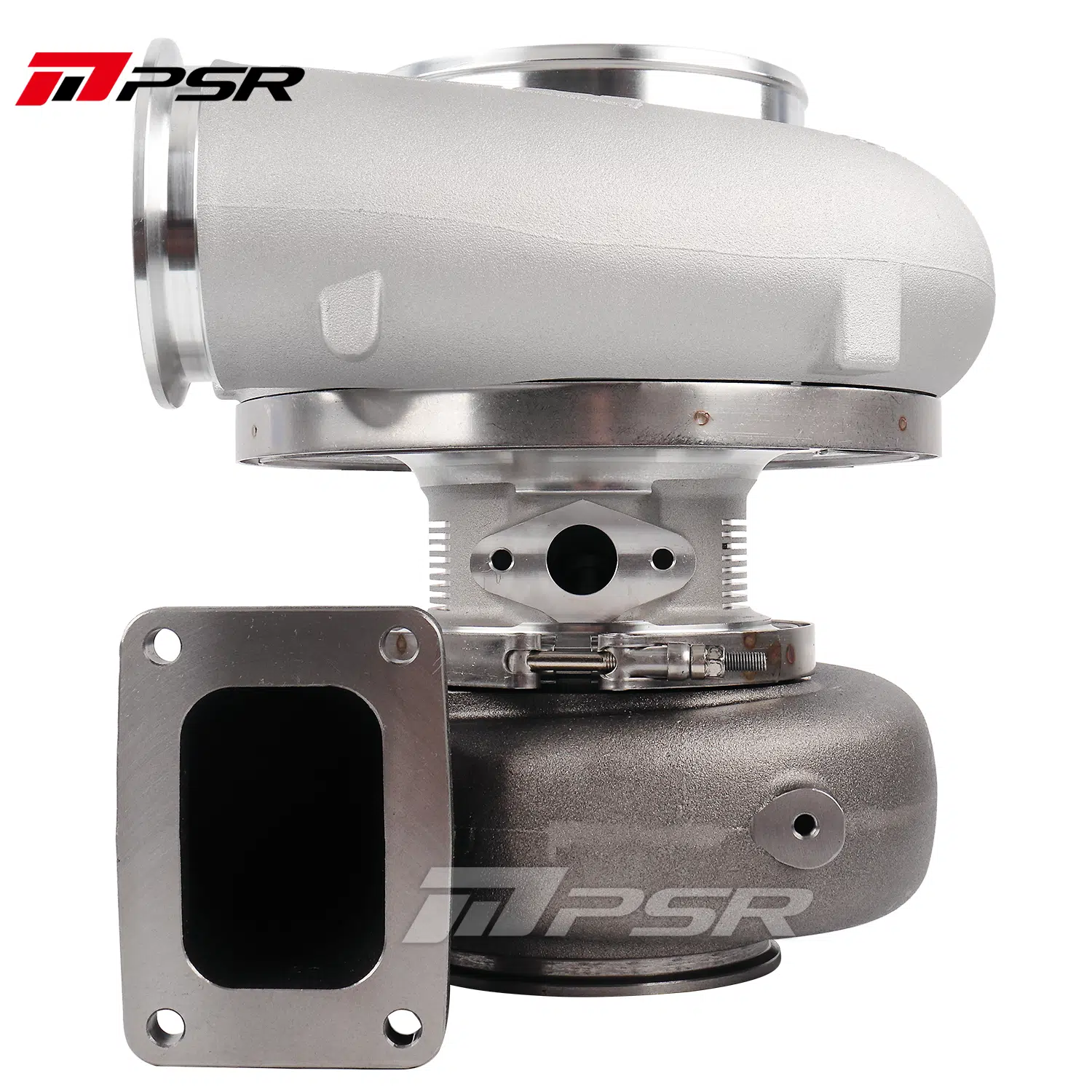

Turbine Inlet: 3.5“ V-Band (DV Housings) or T6 Open
Turbine Outlet: 5“ V-Band
Turbine Housing A/R: 1.09/1.25/1.41
Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
Oil Drain: See graph below(OIL OUTLET)
