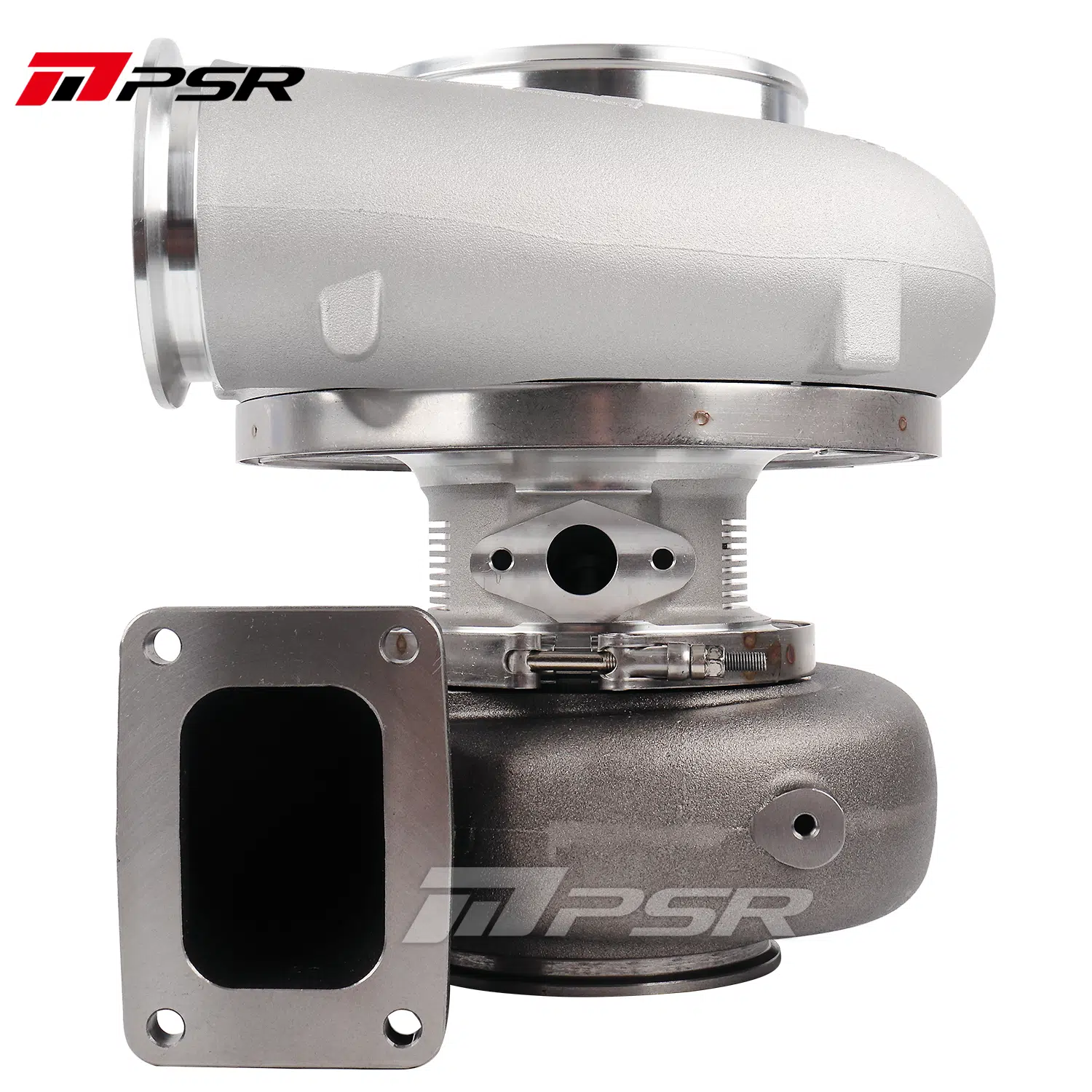

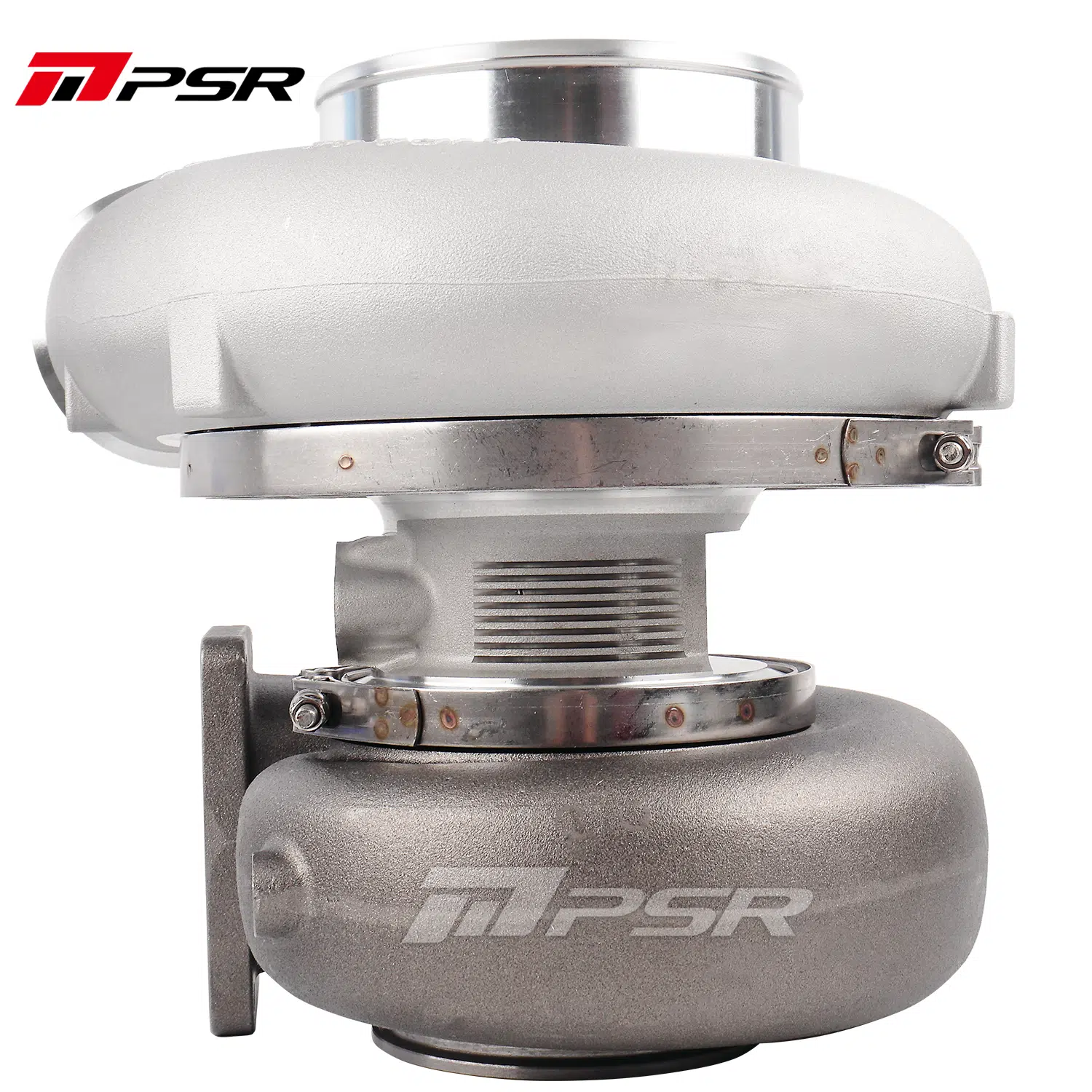

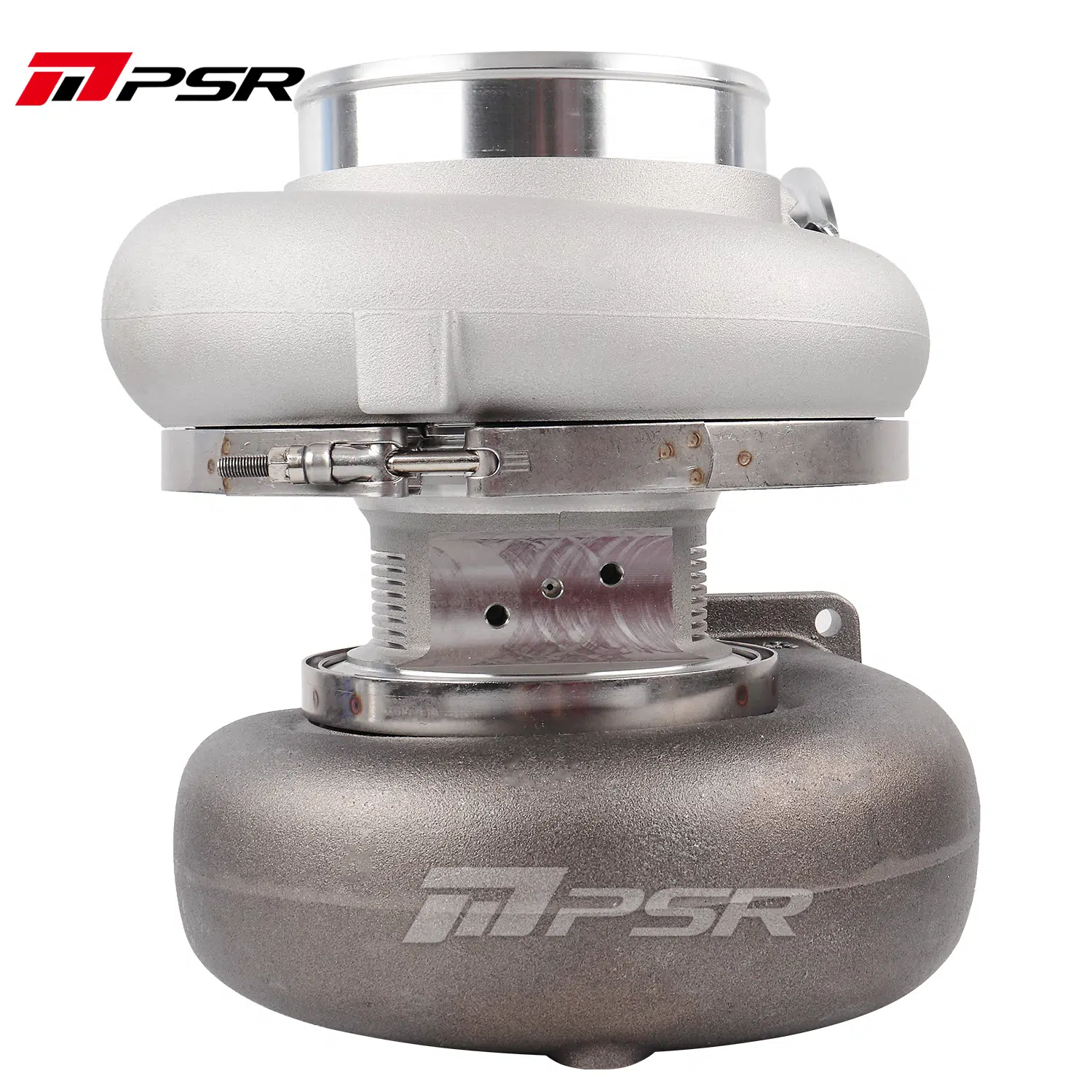

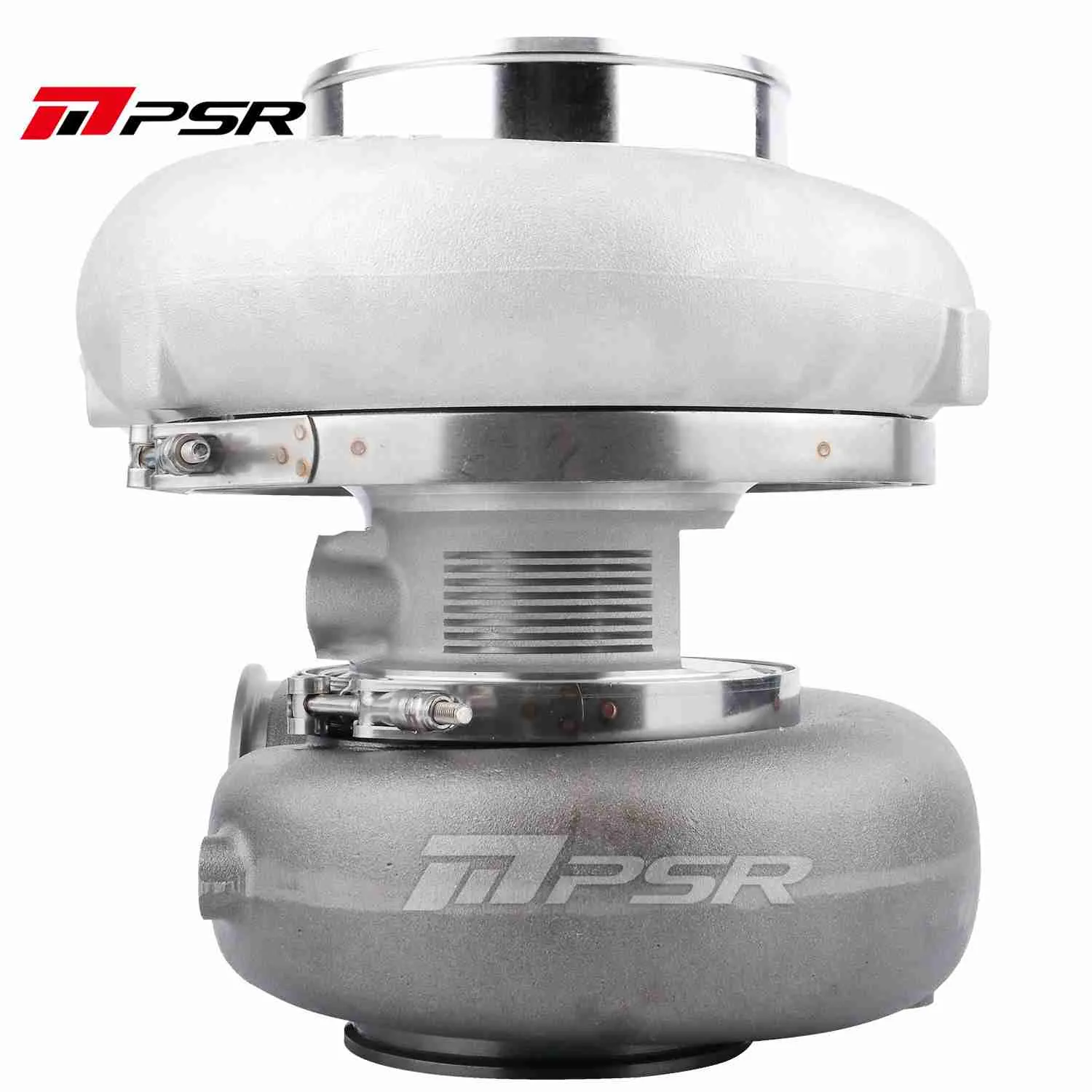

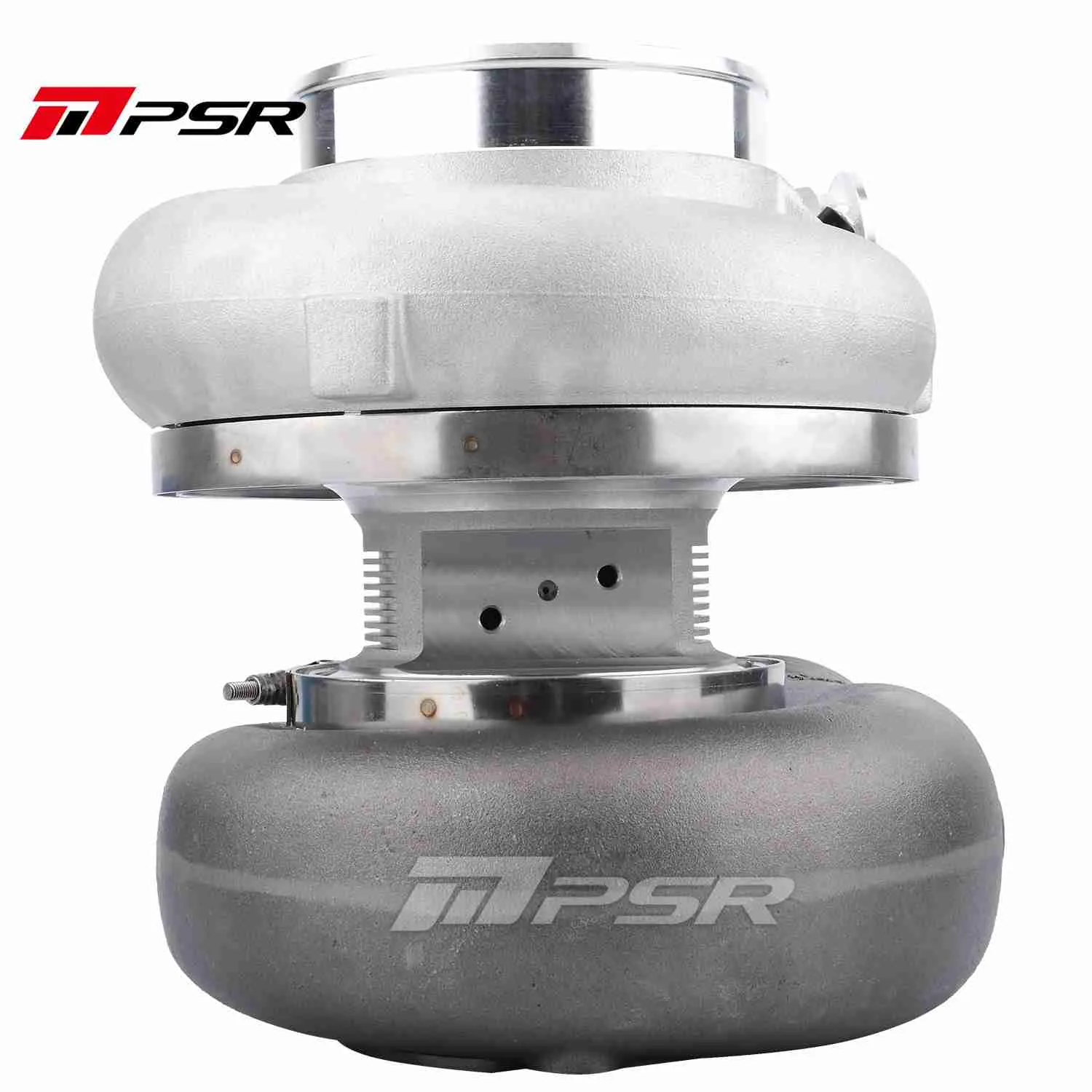

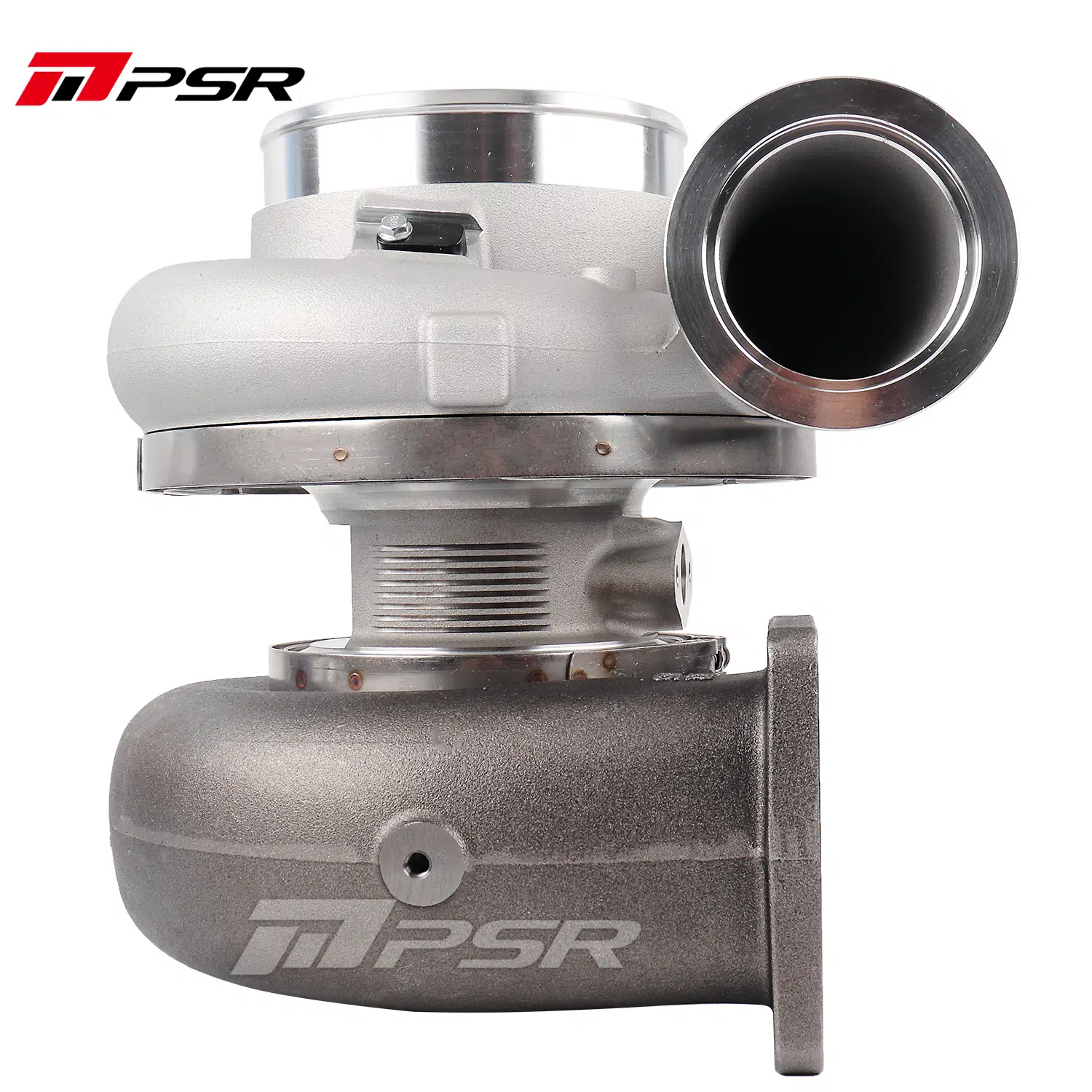

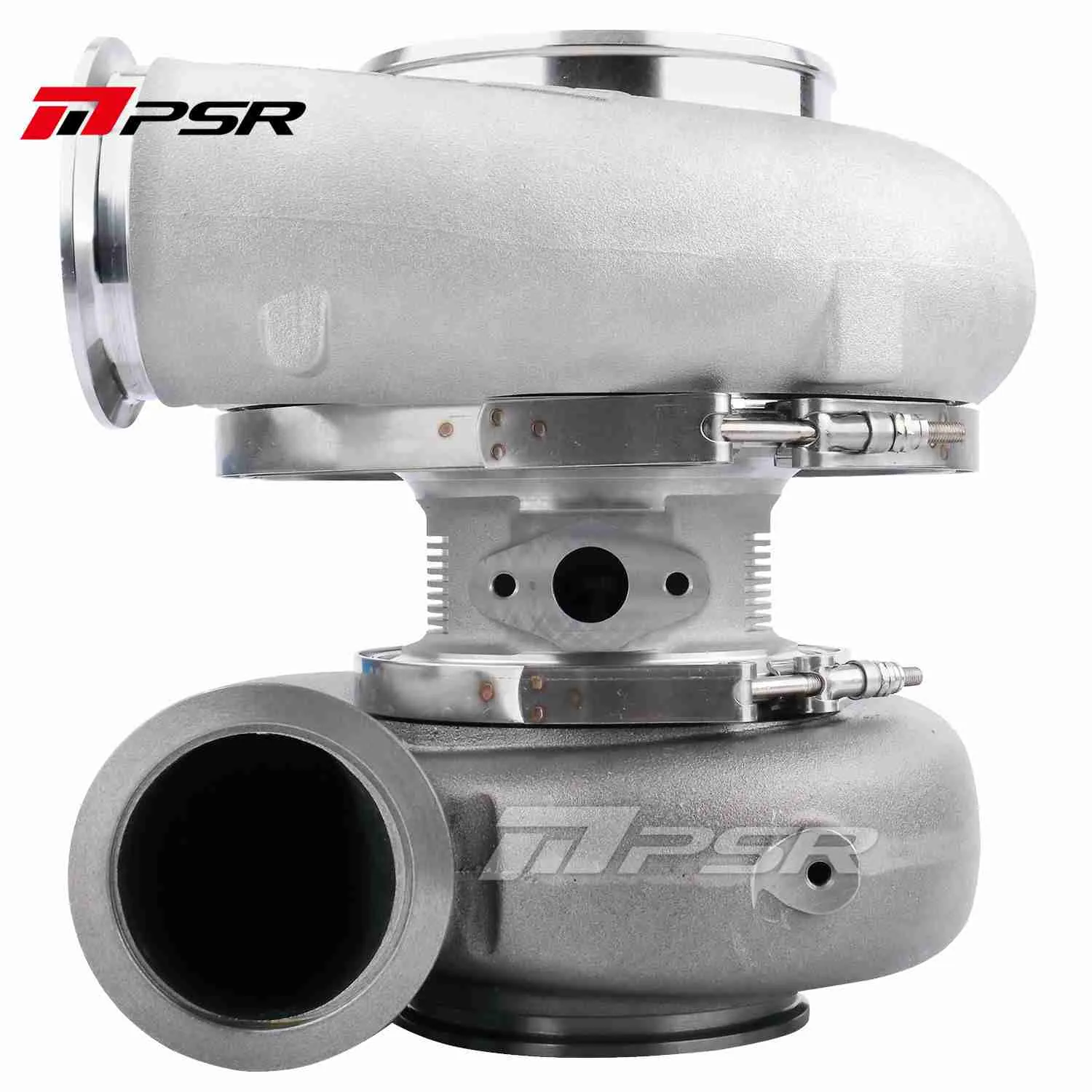

PSR PRO106 HP Rating 3000

2.558,49 € – 3.807,99 €

inkl. MwSt. zzgl. Versandkosten

Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion

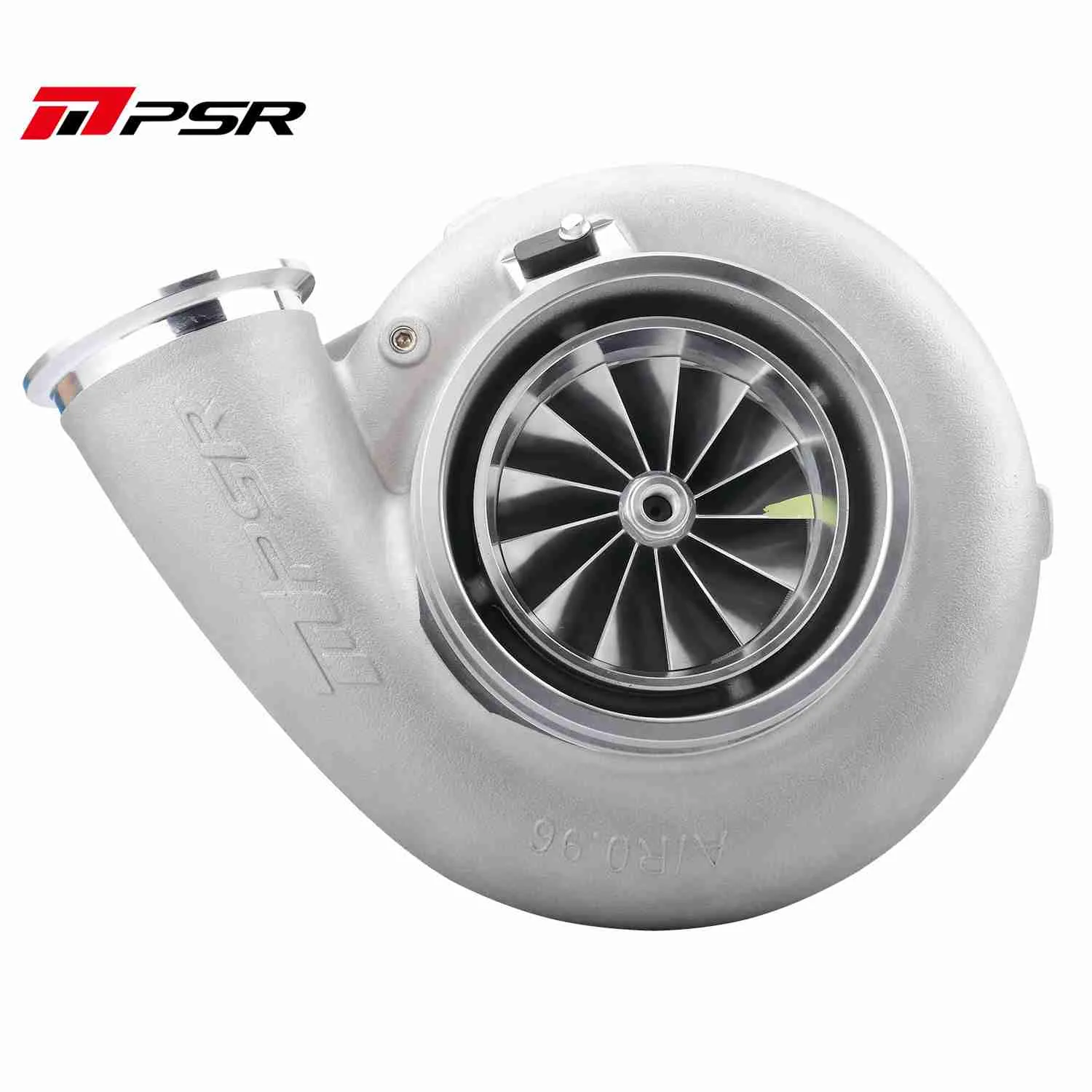

13 Blade G-Aero billet compressor wheel 106mm inducer produces up to 3000 hp

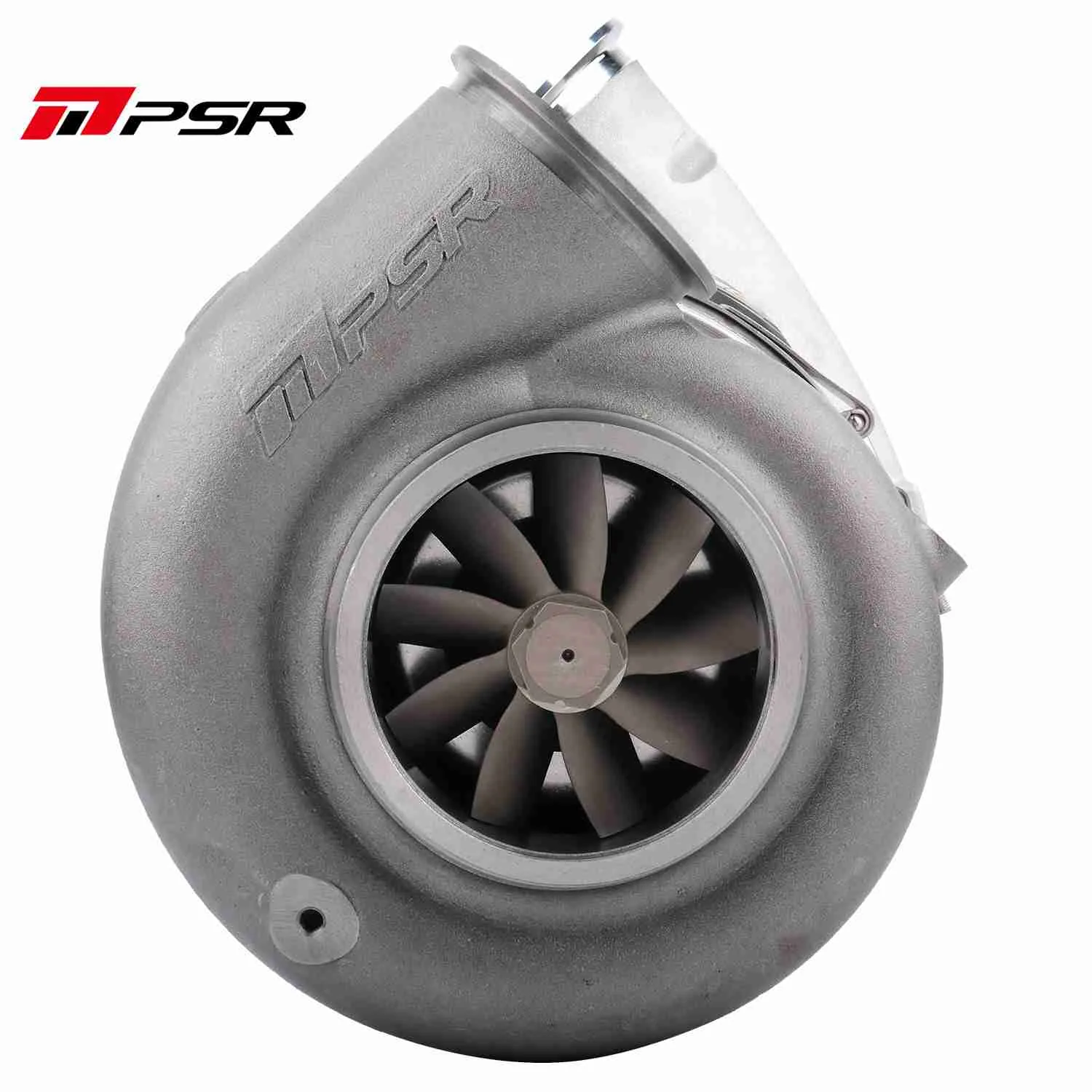

9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
Fin cooled aluminum center housing, lighter weight
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Installation Hardware: 4?? flange kit for Comp. Outlet, T6 Gasket/3.5?? flange kit for Turb. Inlet,?5?? flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting(-4AN ? 1.65mm (0.065??) Orifice) included

Lieferzeit: 3-7 Werktage

Compressor Housing Options

Turbine Housing Options

Zurücksetzen

Art.-Nr.: N/A Category : Turbo Tag : Promod Marke: Pulsar, Pulsar Turbo Systems

Beschreibung

Compressor Wheel: 106*144mm
Turbine Wheel: 118*112mm
Compressor Inlet: 6” Hose
Compressor Outlet: 4” V-band
Compressor Housing A/R: 0.96
Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
Turbine Outlet: 5” V-Band
Turbine Housing A/R: 1.09/1.25/1.41
Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
Oil Drain: See graph below(OIL OUTLET)
