Kraftstoffverteiler für Nissan RB25DET Top Feed Conversion Radium Engineerign

Beschreibung

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB.

8AN ORB Adapter Fittings
8AN ORB Direct Mount Regulators
8AN ORB Fuel Pulse Dampers
Fuel Pressure Gauge Adapters

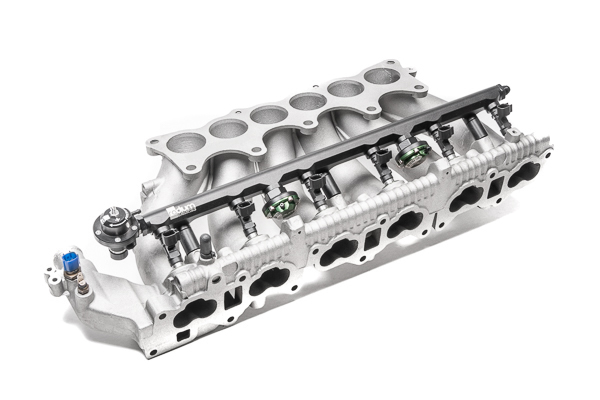

Manufactured with a large 0.69″ internal bore, the fuel rail can support all any engine power requirements. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed injectors, allowing the use of a wide variety of aftermarket fuel injectors available on the market.
This kit is compatible with E85.

The fuel rail has four 8AN ORB ports that can be used for fuel inlet, outlet or for plumbing option accessories. All unused ports must be plugged.

The rail is extruded and CNC machined from solid 6063 aluminum and black anodized for a high quality surface finish.

Included
-Black Anodized Aluminum Fuel Rail
-Insulating Spacers, Short (x3)
-Insulating Spacers, Tall (x3)
-Insulating Washers (x3)

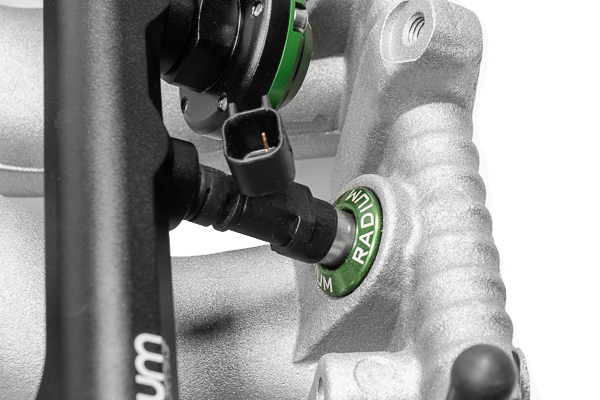

-O-ring Sealed Injector Seats
-Stainless Steel Mounting Bolts, Short (x3)
-Stainless Steel Mounting Bolts, Tall (x3)

Instruction PDF
