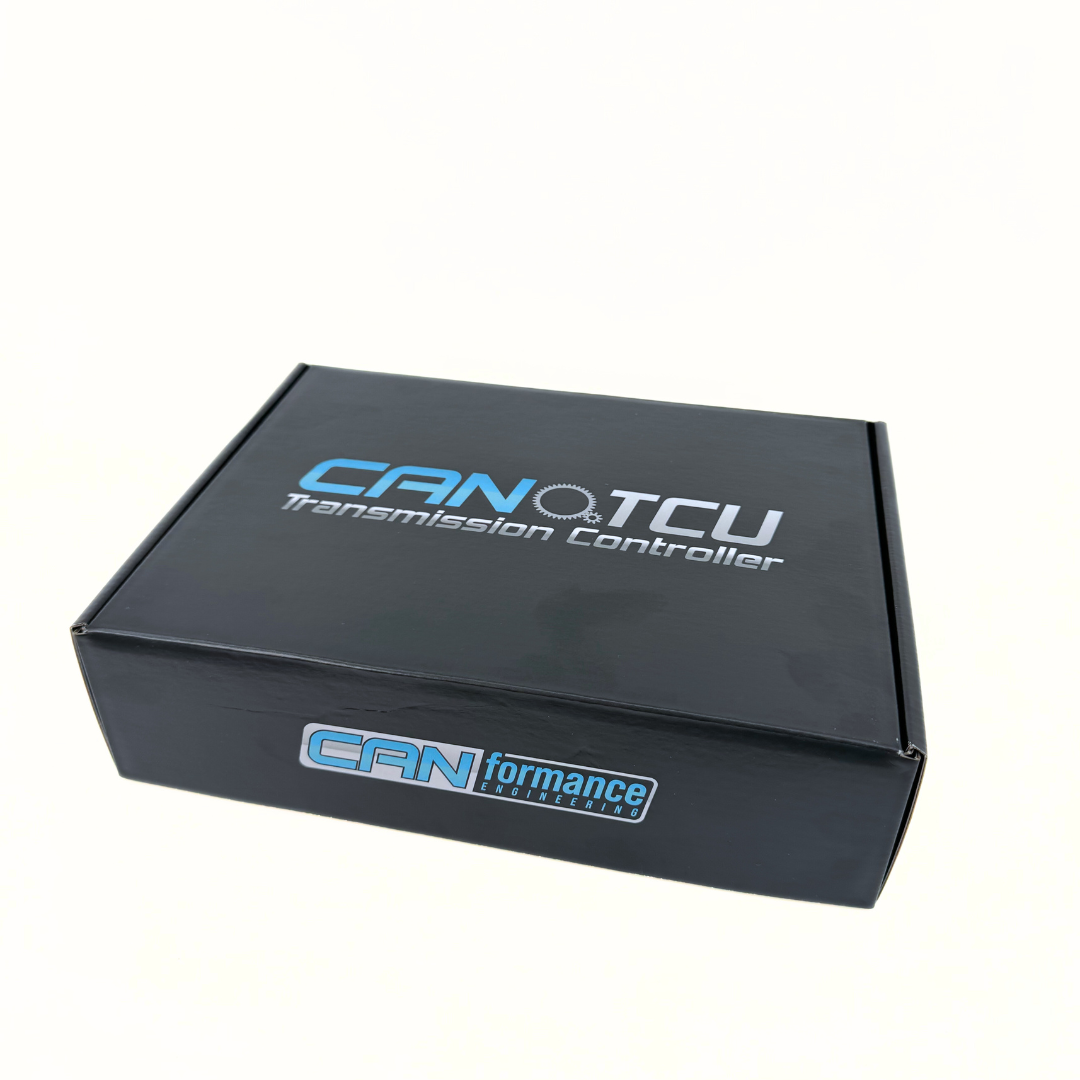

Canformance CANTCU Transmission Controller

Beschreibung

Thefirstandmost advancedCAN-based transmission controller for controlling BMW’s 8HP/DCT transmissions.

• • Retains OEM transmission control module inside the transmission
  • OEM drivability in all driving situations
  • All safety functions working
  • No soldering -> no risk of damaging hardware
  • Built-in Flasher for unlocking the transmission immobilizers -> no need to spend extra money/time on unlocking

Supported transmissions

• • 1st Generation BMW F-Series 8HP transmissions (45/70/90)
  • 2nd Generation BMW F-Series 8HP transmissions (50/75)
  • 2nd Generation BMW G-Series 8HP transmissions (50/75)
  • 2nd Generation BMW F-Series DCT transmissions (GS7D36SG/GS7D70SG)
  • 1st Generation BMW E-Series DCT transmissions (GS7D36SG)

Supported ECUs

• • BMW E6/7/8/9x
  • E46 MS43/EDC16
  • MaxxECU
  • Emtron
  • Motec
  • Haltech
  • ECUMaster
  • Syvecs
  • …and many more

Full support description and requirements

Package Contents

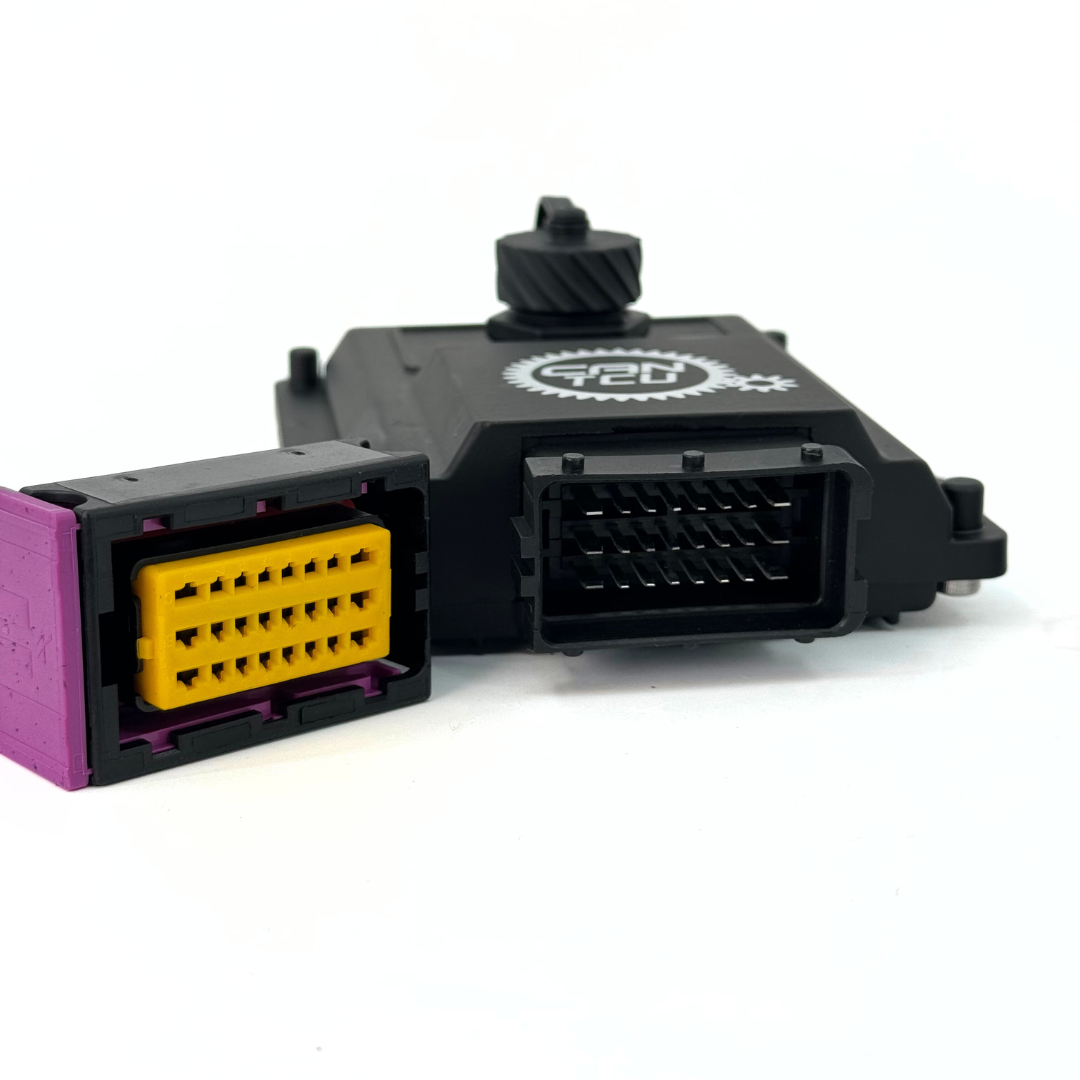

• • CANTCU Control Unit
  • 24-pin Connector and pins
  • USB-A to USB-B cable
  • 4x 120 ohm terminating resistors

Note! Buy both the controller and harness together, and get 30% OFF the 8HP/DCT CANTCU PNP Harness from HPR
