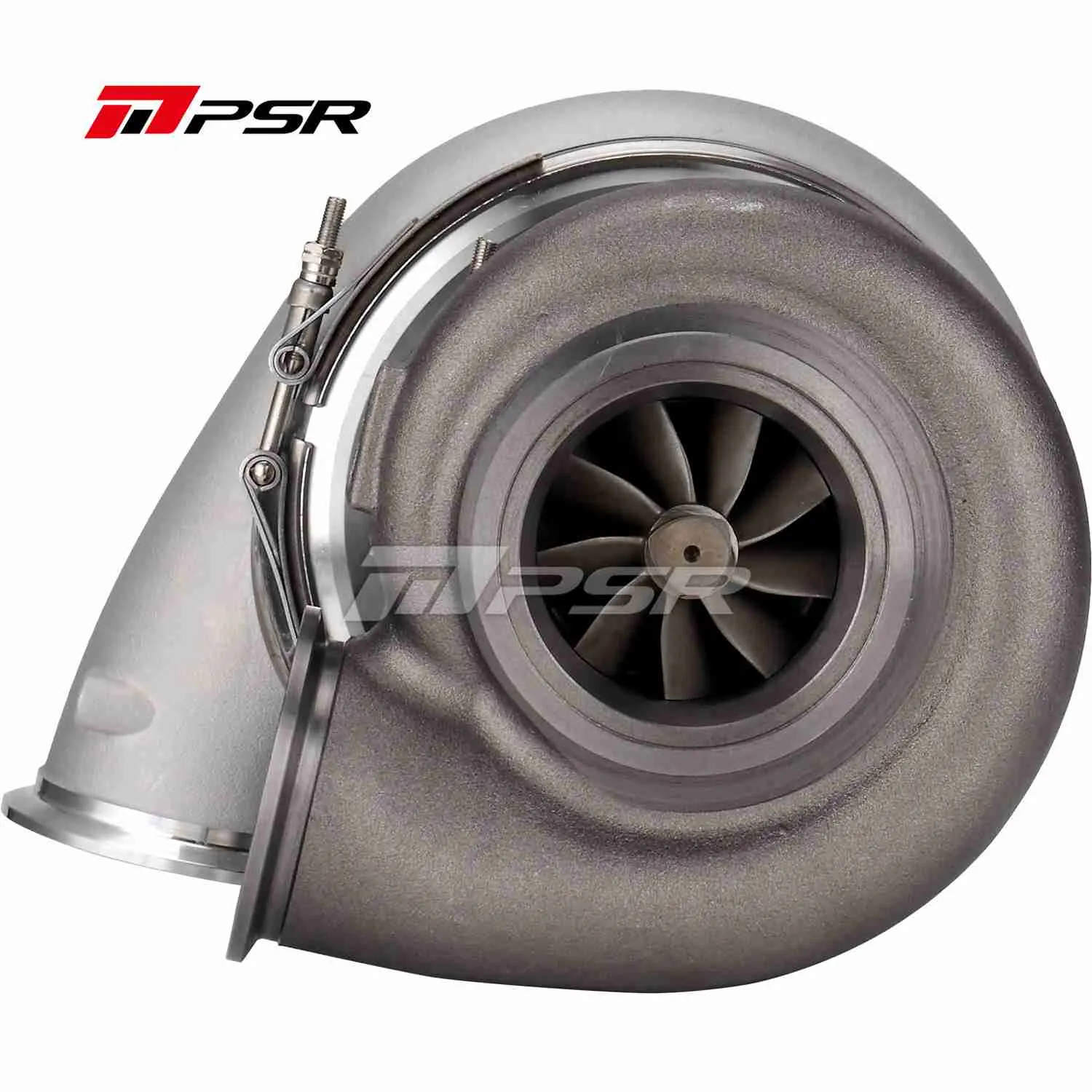

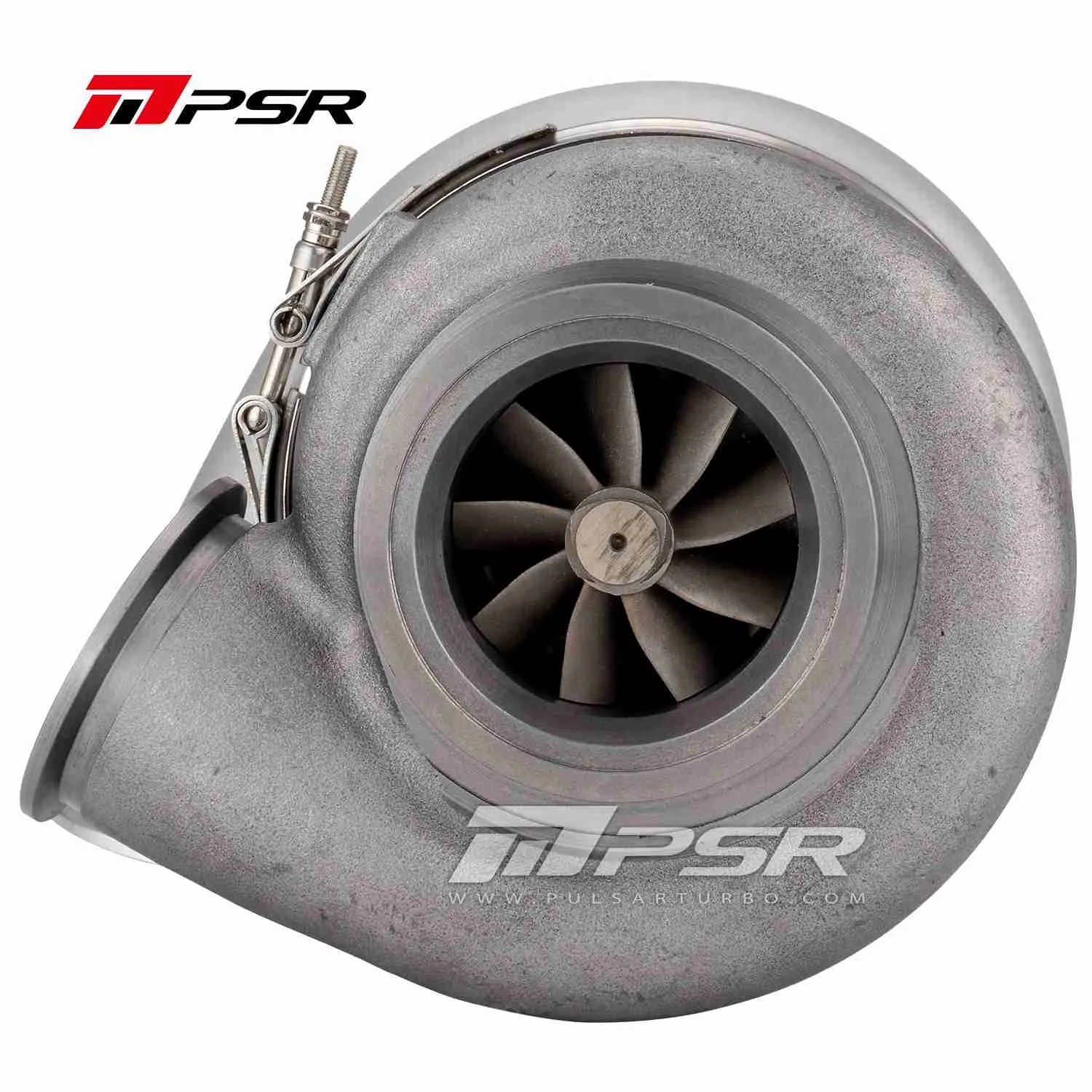

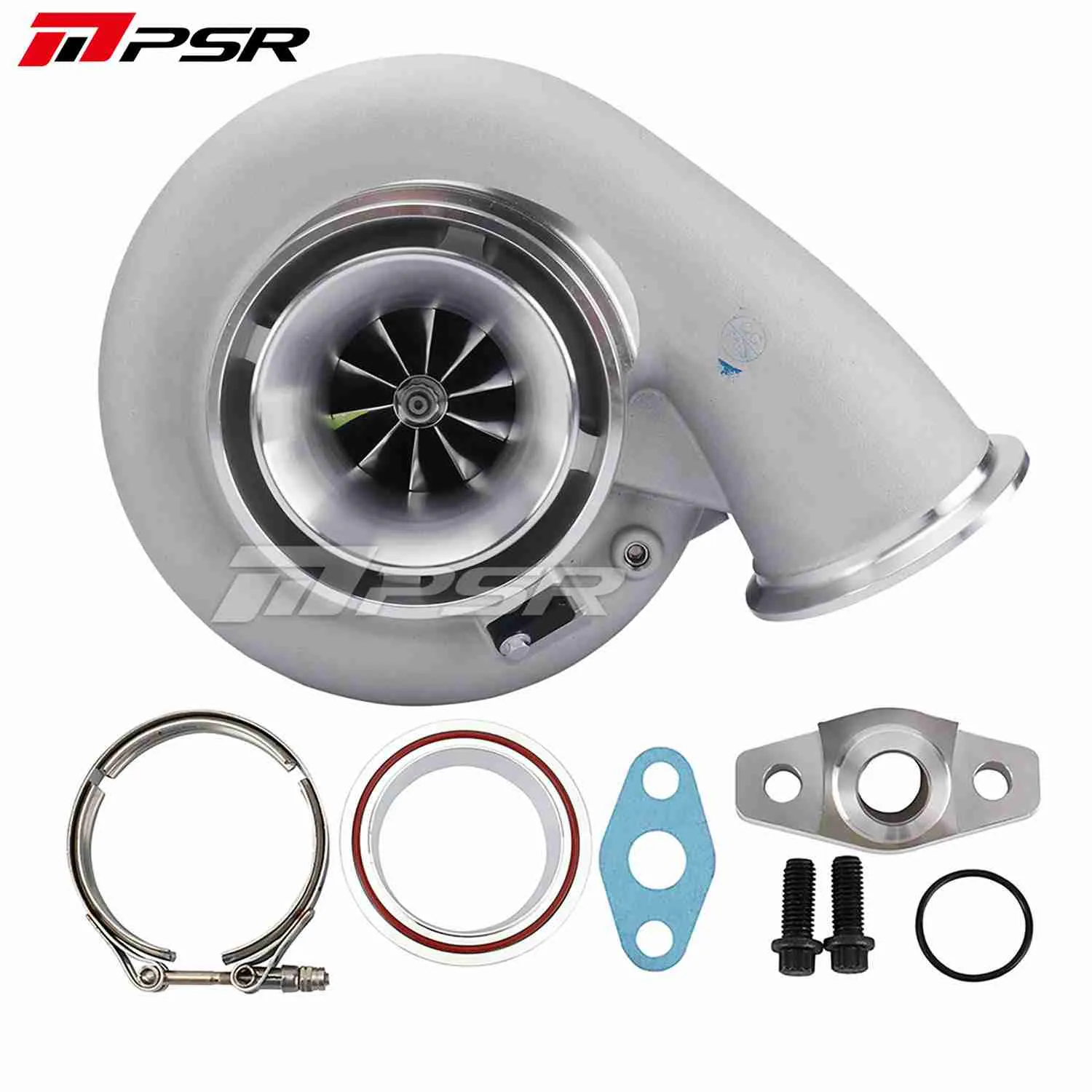

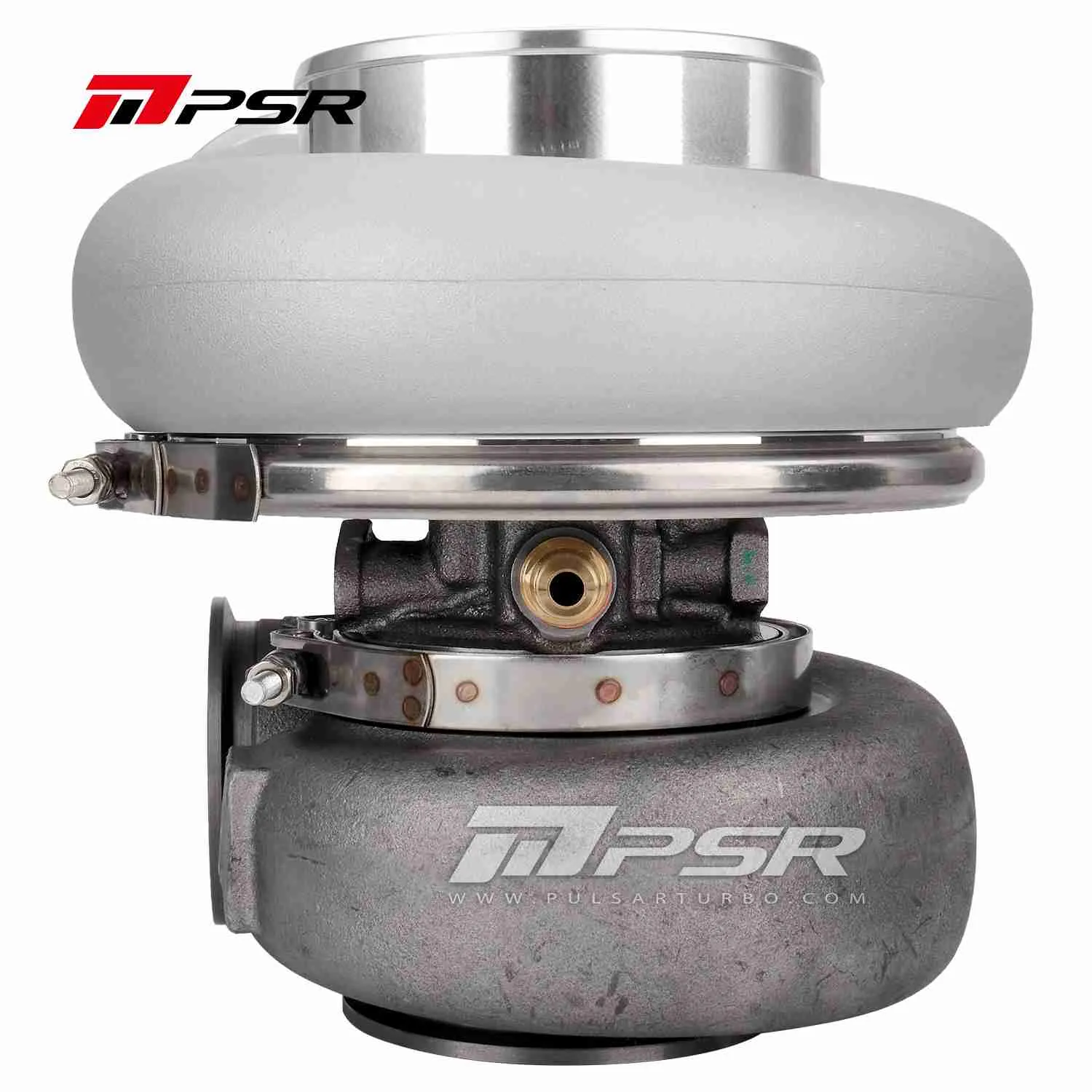

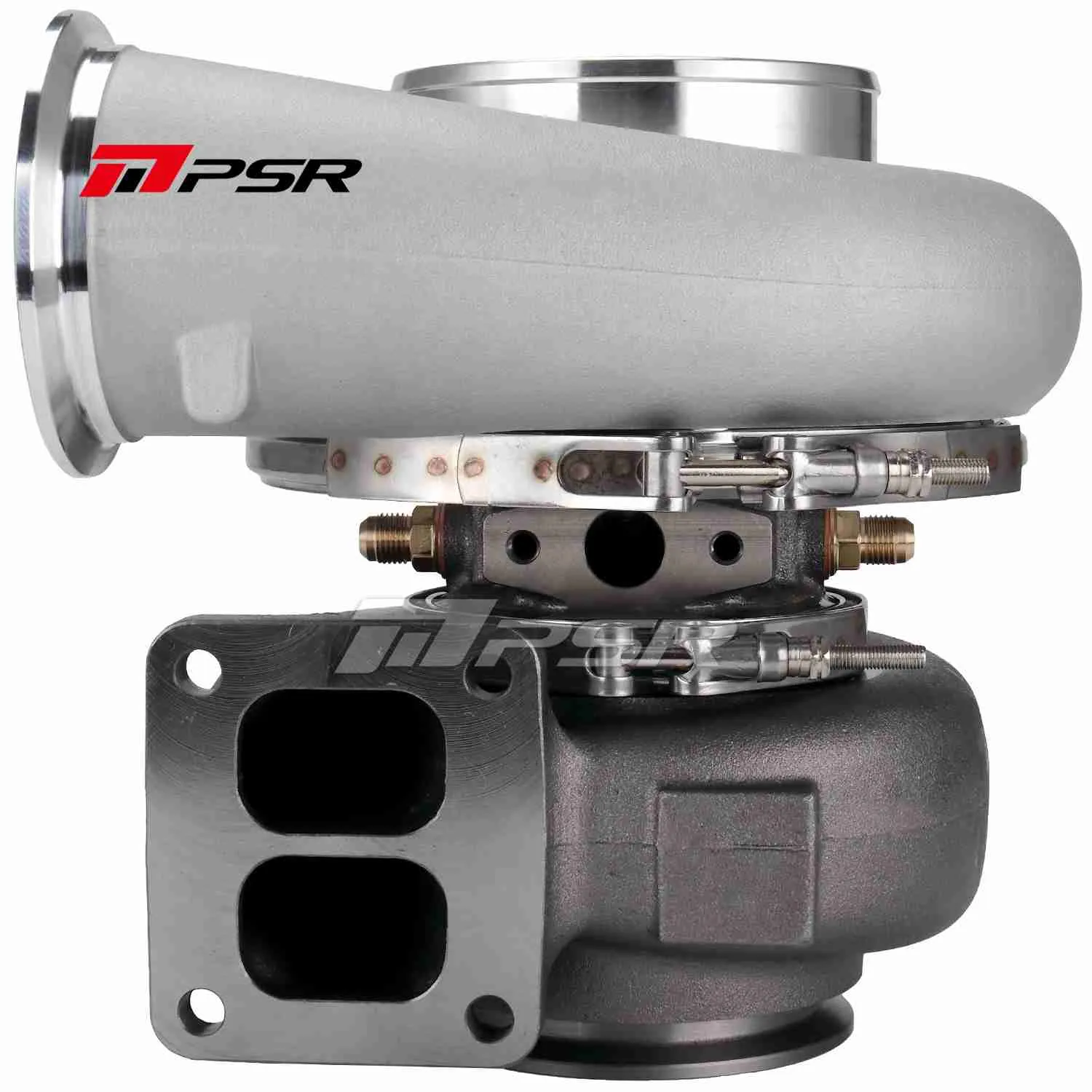

PSR Class Legal 6275G Dual Ball Bearing Turbocharger

1.070,99 € – 1.249,49 €

inkl. MwSt. zzgl. Versandkosten

PSR Class Legal Turbo with 62/98mm Compressor wheel
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
10 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
7 Turbine housing in option

Turbine Housing Options

Zurücksetzen

Beschreibung

-Compressor Wheel: 62*98mm

-Turbine Wheel: 82*75mm

-Compressor Inlet: 5″ Hose

-Compressor Outlet: 3″ V-Band

-Turbine Inlet: 3″ V-Band

-Turbine Outlet: 3.5″ V-Band

-Water Ports: -6AN

-Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)

-Oil Drain: Angle 15??, -12AN(O-Ring sealed Flange Kit Incl‘)

T4(Divided) inlet, Vband outlet (fits 4?? OD tubing), 1.01 A/R
T4(Open) inlet, Vband outlet (fits 3.5?? OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 3.5?? OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 4?? OD tubing), 1.28 A/R
Vband inlet (fits 3?? OD tubing) and Vband outlet (fits 3.5?? OD tubing), 1.01 A/R
Vband inlet (fits 3?? OD tubing) and Vband outlet (fits 3.5?? OD tubing), 1.15 A/R
Vband inlet (fits 3?? OD tubing) and Vband outlet (fits 3.5?? OD tubing), 1.28 A/R

Turbine Housing Options	T4(open) inlet, Vband Outlet, 1.15A/R, T4(divided) inlet, Vband Outlet, 1.15A/R, Vband inlet, Vband outlet, 1.15A/R, T4(divided) inlet, Vband Outlet, 1.28A/R, Vband inlet, Vband outlet, 1.28A/R, Vband inlet, Vband outlet, 1.01A/R, Without Turbine housing, T4(divided) inlet, Vband Outlet, 1.01A/R
